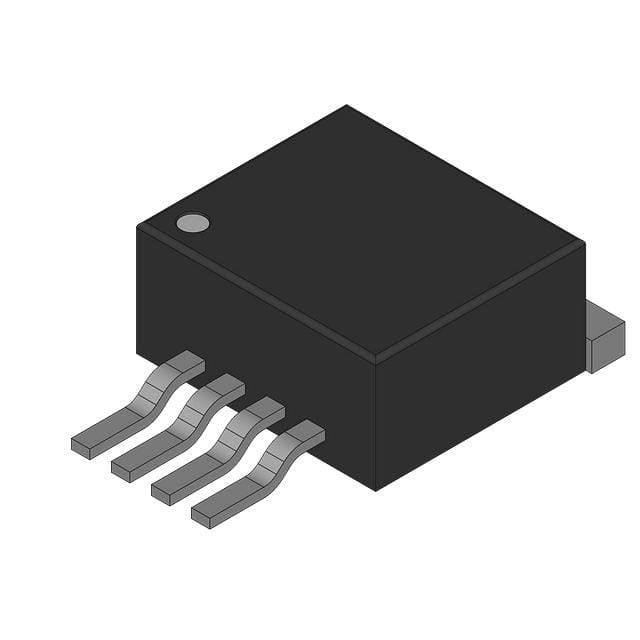

INFINEON IFX25401TBVATMA1 芯片, 稳压器, LDO, 可调, 0.4A, 2.5V-20V, TO-263-5
Linear Voltage Regulator IC 1 Output 400mA TO-263-5
得捷:
IC REG LIN POS ADJ 400MA TO263-5
e络盟:
INFINEON IFX25401TBVATMA1 芯片, 稳压器, LDO, 可调, 0.4A, 2.5V-20V, TO-263-5
艾睿:
Keep the energy stable for every system by using this LDO IFX25401TBVATMA1 linear regulator by Infineon Technologies. Its typical dropout voltage at current is 0.25@250mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.4 A. This will operate at a minimum voltage of 4.5 V and a maximum voltage of 40 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of 2.5 to 20 V, this is power management at its best. At a load regulation of 35mV and line regulation of 25mV a constant current can be produced at the output of your circuit. The maximum dropout voltage is 0.5@250mA V. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
安富利:
LDO Regulator Pos 2.5V to 20V 0.4A 5-Pin TO-263 T/R
Verical:
LDO Regulator Pos 2.5V to 20V 0.4A 6-Pin5+Tab TO-263 T/R
Newark:
# INFINEON IFX25401TBVATMA1 LDO, ADJ, 0.4A, 2.5V-20V, TO-263-5
输出接口数 1
输出电压 2.5V ~ 20V
输出电流 400 mA
针脚数 5
静态电流 0.1 mA
跌落电压 250 mV
输入电压Max 40 V
输入电压Min 4.5 V
输出电压Max 20 V
输出电压Min 2.5 V
输出电流Max 0.4 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 4.5V ~ 40V
安装方式 Surface Mount
引脚数 5
封装 TO-263-6
封装 TO-263-6
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
