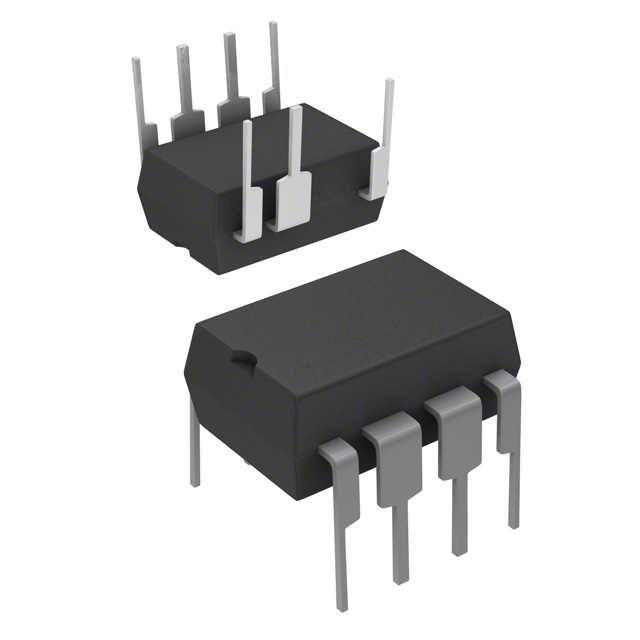

Current Mode PWM Controller 650V 7Pin DIP Tube
Description:
Off-line SMPS Current Mode Controller IC with integrated 650V CoolMOS™ and start-up cell in DIP-7 package. It has more robust design and can work to -40°C. The outstanding performance includes BiCMOS technology, active burst mode, built-in frequency jitter, soft gate driving, propagation delay compensation, built-in soft start time, built-in blanking time and extendable blanking time for over load protection, external auto-restart enable feature,etc.
Summary of Features:
- .
- 650V avalanche rugged CoolMOS™ with built-in Start-up Cell
- .
- Active burst mode for lowest standby power
- .
- Fast load jump response in active burst mode
- .
- 65kHz internally fixed switching frequency
- .
- Auto restart protection mode for overload, open
loop, V CC under voltage, over temperature & over voltage
- .
- Built-in soft start
- .
- Built-in blanking window with extendable blanking time for short duration high current
- .
- External auto-restart enable pin
- .
- Max duty cycle 75%
- .
- Overall tolerance of current limiting < ±5%
- .
- Internal PWM Leading Edge Blanking
- .
- BiCMOS technology provide wide V CC range
- .
- Built-in Frequency jitter and soft driving for low EMI
Benefits:
- .
- Lowest standby power requirements <50mW
- .
- Low operating temperature down to -40°C
- .
- Auto restart protection for overload, over temperature, over voltage
- .
- Wide VCC range
- .
- Soft driving for low EMI
Target Applications:
Adapter, Charger, Blu-Ray, DVD-Player, Set-Top-Box, Digital Photo Frame, Auxiliary Power Supply for Server, PC, Printer, TV, Home Theater/Audio System, White Goods, etc.
