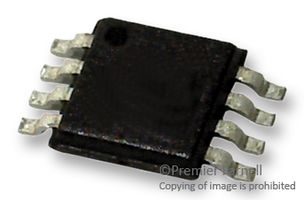

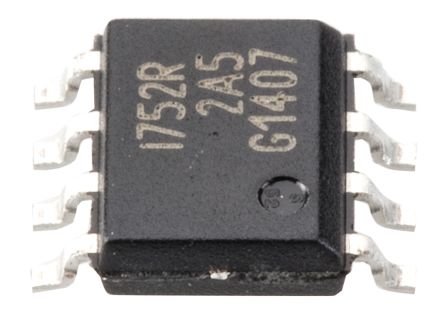

INFINEON ISP752RFUMA1 电源负载开关, SIPMOS技术, 高压侧, 1路输出, 16V, 4.5A, SOIC-8
PROFET 智能高侧电源开关,单通道,
过载保护
电流限制
短路保护
热关闭
过电压保护
静电放电 ESD 保护
得捷:
IC PWR SWITCH N-CHAN 1:1 DSO-8
立创商城:
ISP752RFUMA1
欧时:
Infineon ISP752RFUMA1, 单输出 智能电源开关, 高侧开关, 1.7A, -10 → 16V, 8引脚 SOIC封装
贸泽:
电源开关 IC - 配电 SMART HI SIDE SWITCH INDUSTRIAL APP 1.3A
e络盟:
电源负载开关, SIPMOS技术, 高压侧, 1路输出, 16V, 4.5A, SOIC-8
艾睿:
Reduce the risk of damage to your circuit with the use of this high side ISP752RFUMA1 power switch by Infineon Technologies. This charge controller has single output. This charge controller has an input voltage of -10 to 16 V. This device has a maximum power dissipation of 1500 mW. It features 0.15 Ohm switch on resistance. Its maximum power dissipation is 1500 mW. This device has a supply current of 0.8 mA and a minimum output current of 1.3 A. This charge controller has an operating temperature range of -30 °C to 85 °C.
Chip1Stop:
Power Switch Hi Side 1.3A 8-Pin DSO
Verical:
Current Limit SW 1-IN 1-OUT 6V to 52V 1.7A 8-Pin DSO T/R
Newark:
# INFINEON ISP752RFUMA1 Power Load Switch, SIPMOS Technology, High Side, 1 Output, 16V, 4.5A, SOIC-8
输出接口数 1
输出电流 1.3 A
供电电流 0.8 mA
针脚数 8
耗散功率 1.5 W
输出电流Min 1.3 A
工作温度Max 85 ℃
工作温度Min -30 ℃
耗散功率Max 1500 mW
电源电压Max 52 V
电源电压Min 6 V
输入电压 16 V
安装方式 Surface Mount
引脚数 8
封装 PG-DSO-8
长度 5 mm
宽度 4 mm
高度 1.45 mm
封装 PG-DSO-8
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 车用, Computers & Computer Peripherals, Automotive, Industrial, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
