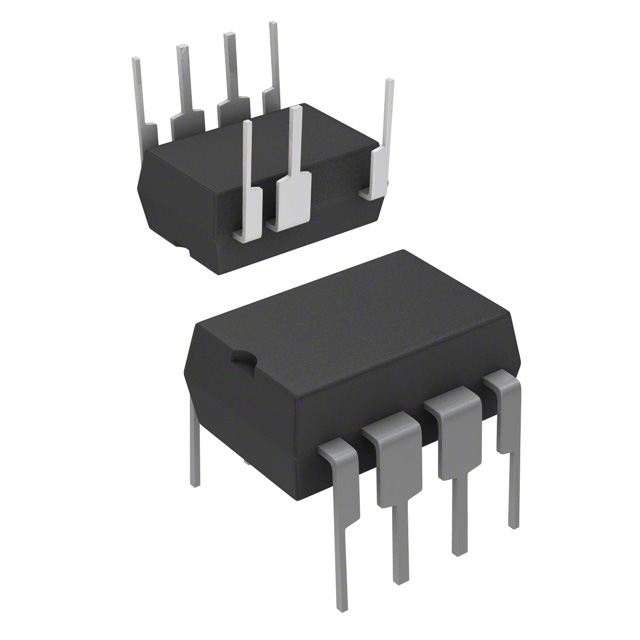

ICE3AR0680VJZXKLA1

AC/DC转换器, 反激式, 85VAC至265VAC输入, 39W, DIP-7

Description:

Of f -Line SMPS Current Mode Controller with integrated 800V CoolMOS™ and Startup cell input OVP & frequency jitter in DIP-7

The ICE3AR0680VJZ is a modified version of ICE3ARxx80JZ CoolSET™-F3R 800V in DIP-7 package. It adds in the input OVP feature but removes the brownout feature and external protection enable feature. In summary, the ICE3AR0680VJZ is a device running at 100kHz, implemented with input OVP feature, installed with 800V MOSFET with startup cell and housed in DIP-7 package. It provides good voltage margin of MOSFET, lowest standby power, selectable burst level, reduced output ripple during burst mode, robust protection with input OVP feature, accurate maximum power control for both maximum power and burst power, low EMI with frequency jittering and soft gate drive, built-in and flexible protections, etc.

Evaluation Board

Summary of Features:

.

800V avalanche rugged CoolMOS™ with startup cell

.

Active Burst Mode to reach the lowest Standby Power <100mW

.

Selectable entry and exit burst mode level

.

Adjustable blanking Window for high load jumps

.

Frequency jitter and soft driving for low EMI

.

Adjustable input OVP

.

Auto Restart protection for over load, over temperature and over voltage

.

Low Operating temperature down to -40°C

.

Pb-free lead plating, halogen free mold compound, RoHS compliant
