IS61NLF12836A-7.5TQI

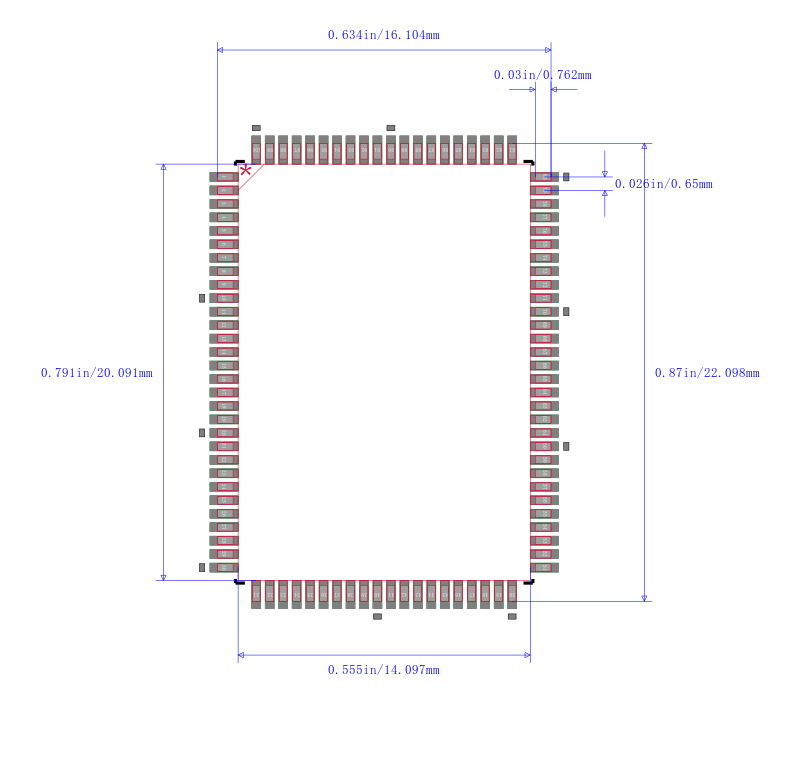

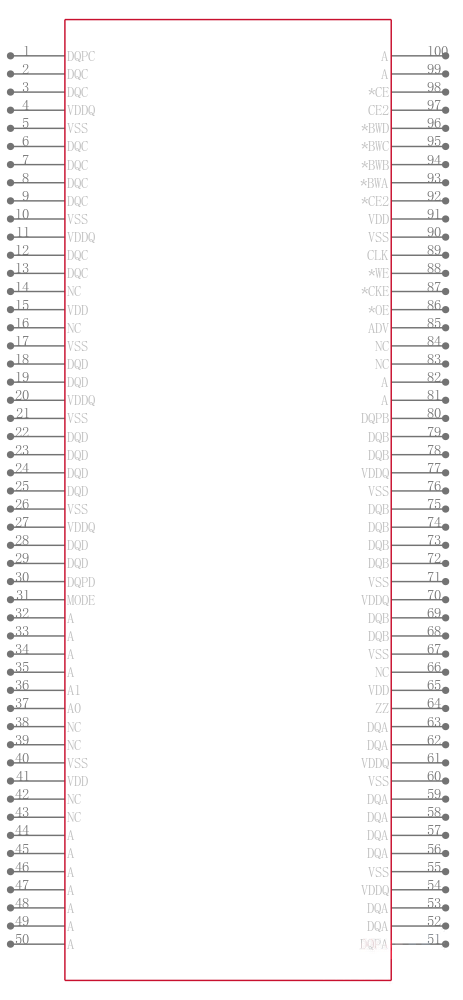

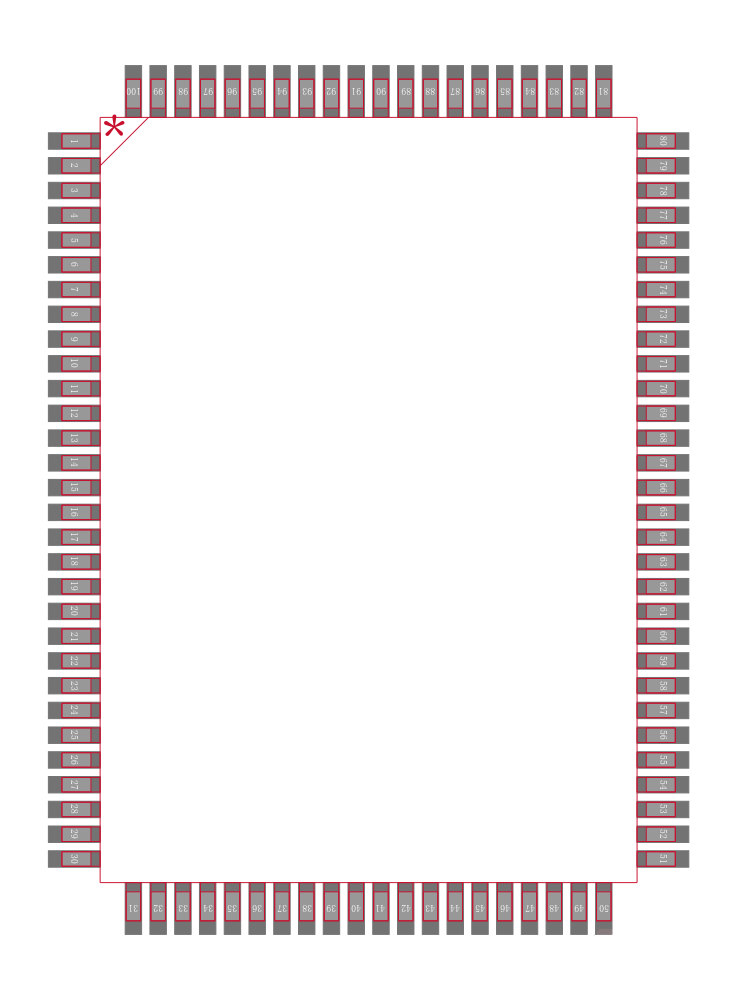

SRAM Chip Sync Quad 3.3V 4M-Bit 128K x 36 7.5ns 100Pin TQFP

* 100 percent bus utilization * No wait cycles between Read and Write * Internal self-timed write cycle * Individual Byte Write Control * Single R/W Read/Write control pin * Clock controlled, registered address, data and control * Interleaved or linear burst sequence control using MODE input * Three chip enables for simple depth expansion and address pipelining * Power Down mode * Common data inputs and data outputs * /CKE pin to enable clock and suspend operation * JEDEC 100-pin QFP * Power supply: Vdd 3.3V ± 5%, Vddq 3.3V/2.5V ± 5% * JTAG Boundary Scan for BGA packages * Commercial and Industrial temperature support * Lead-free available * Error Detection and Error Correction
