ISO5500DWR概述

2.5 A隔离式IGBT , MOSFET栅极驱动器 2.5 A Isolated IGBT, MOSFET Gate Driver

Never worry about transistors not switching by using this power driver by Texas Instruments. This device has a maximum propagation delay time of 200typ ns and a maximum power dissipation of 592 mW. Its maximum power dissipation is 592 mW. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This gate driver has an operating temperature range of -40 °C to 125 °C. This device has a minimum operating supply voltage of 3|15 V and a maximum of 5.5|30 V.

ISO5500DWR中文资料参数规格
技术参数

上升/下降时间 55ns, 10ns

输出接口数 1

通道数 1

耗散功率 592 mW

隔离电压 4243 Vrms

下降时间 10 ns

下降时间Max 10 ns

上升时间Max 55 ns

工作温度Max 125 ℃

工作温度Min -40 ℃

耗散功率Max 592 mW

电源电压Max 5.5 V

电源电压Min 3 V

封装参数

安装方式 Surface Mount

引脚数 16

封装 SOIC-16

外形尺寸

封装 SOIC-16

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

ISO5500DWR引脚图与封装图

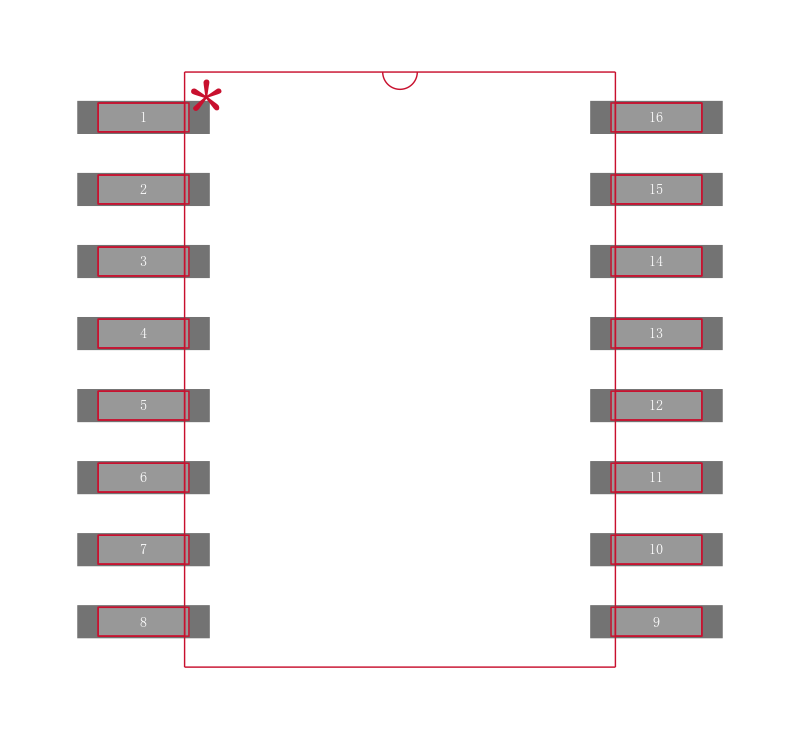

ISO5500DWR引脚图

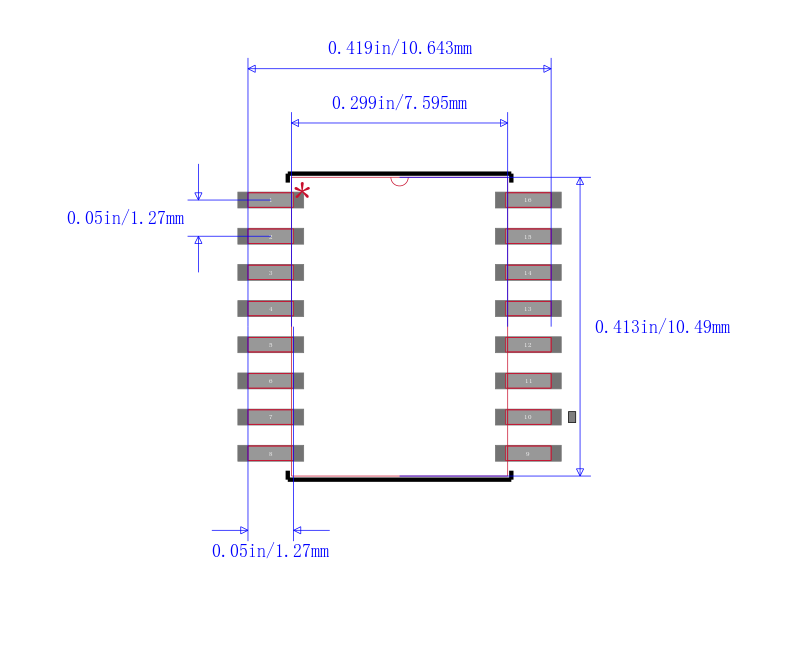

ISO5500DWR封装图
ISO5500DWR封装焊盘图
在线购买ISO5500DWR
型号: ISO5500DWR
制造商: TI 德州仪器
描述:2.5 A隔离式IGBT , MOSFET栅极驱动器 2.5 A Isolated IGBT, MOSFET Gate Driver
