电流分流监控一个???? 16V至80V共模范围 CURRENT SHUNT MONITOR â16V to 80V Common-Mode Range
The INA193INA198 family of current shunt monitors with voltage output can sense drops across shunts at common-mode voltages from 16 V to +80 V, independent of the INA19x supply voltage. They are available with three output voltage scales: 20 V/V, 50 V/V, and 100 V/V. The 500 kHz bandwidth simplifies use in current control loops. The INA193INA195 devices provide identical functions but alternative pin configurations to the INA196INA198 devices, respectively.
The INA193INA198 devices operate from a single 2.7-V to 18-V supply, drawing a maximum of 900 µA of supply current. They are specified over the extended operating temperature range 40°C to +125°C, and are offered in a space-saving SOT-23 package.
电源电压DC 2.70V min
供电电流 700 µA
电路数 1
通道数 1
针脚数 5
共模抑制比 94 dB
带宽 500 kHz
转换速率 1.00 V/μs
输入补偿电压 2 mV
输入偏置电流 16 µA
工作温度Max 125 ℃
工作温度Min -40 ℃
增益带宽 80 dB
精度 ±3 %
共模抑制比Min 80 dB
电源电压Max 18 V
电源电压Min 2.7 V

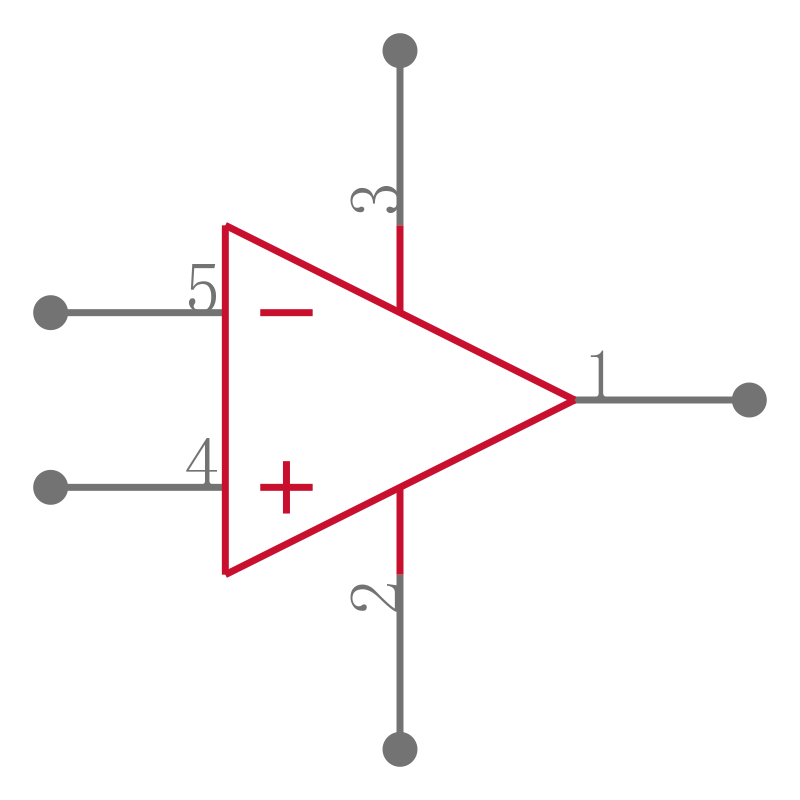

安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用, 通信与网络, 消费电子产品, 维护与修理, 计算机和计算机周边, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
INA196AIDBVR TI 德州仪器 | 当前型号 | 当前型号 |
INA196AIDBVT 德州仪器 | 类似代替 | INA196AIDBVR和INA196AIDBVT的区别 |
INA196AQDBVRQ1 德州仪器 | 类似代替 | INA196AIDBVR和INA196AQDBVRQ1的区别 |
INA196AIDBVTG4 德州仪器 | 类似代替 | INA196AIDBVR和INA196AIDBVTG4的区别 |
