ICM7218DIJI

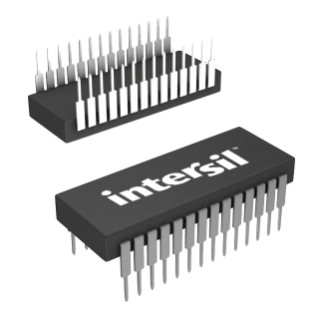

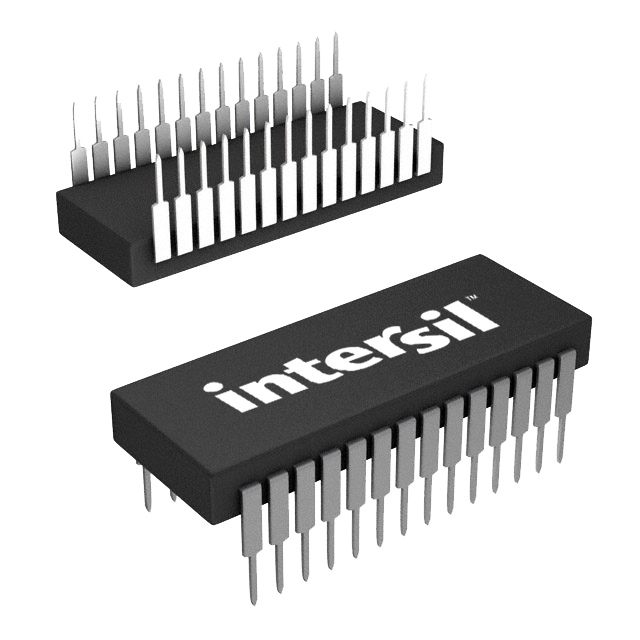

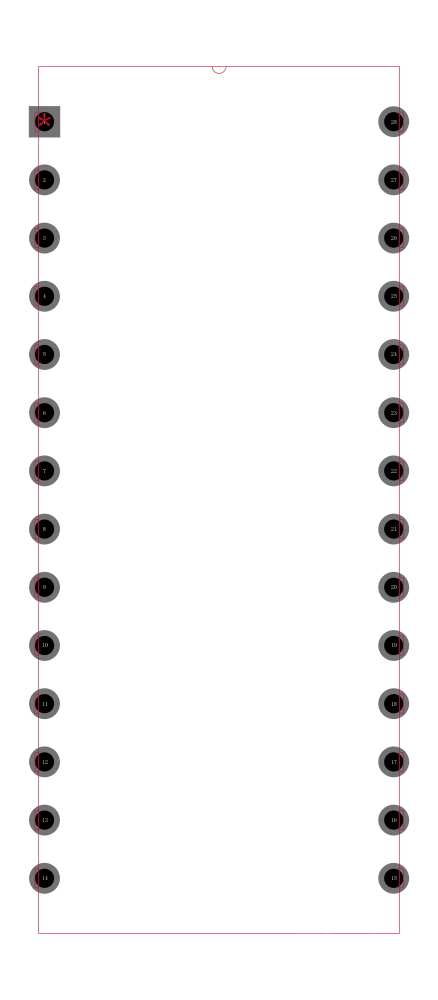

INTERSIL  ICM7218DIJI  芯片, LED驱动器, 8位, 共阴极, DIP28

The is a 8-digit LED microprocessor-compatible multiplexed display Decoder Driver with marking. The universal LED driver system provides the circuitry necessary to interface most common microprocessors or digital systems to an LED display. Included on-chip are an 8-byte static display memory, two types of 7-segment decoders, multiplex scan circuitry and high current digit and segment drivers for either common cathode or common anode displays. The 1CM7218D features two control lines, 4 separate display data input lines and 3 digit address lines. Display data is written into the internal memory by setting up a digit address and strobing the WRITE line low. Only hexadecimal and code B formats are available for display outputs.

.

Output drive suitable for LED displays directly

.

Data retention to 2V Supply

.

Shutdown turns OFF display and puts chip into low power dissipation mode

.

Decimal point drive on each digit

.

Common cathode display
