INTERSIL ICL7667CBAZA 驱动器, MOSFET, 低压侧, 4.5V-15V电源, 1A输出, 20ns延迟, SOIC-8
The is a dual monolithic High-speed Driver designed to convert TTL level signals into high current outputs at voltages up to 15V. Its high speed and current output enable it to drive large capacitive loads with high slew rates and low propagation delays. With an output voltage swing only millivolts less than the supply voltage and a maximum supply voltage of 15V, the ICL7667 is well suited for driving power MOSFETs in high frequency switched-mode power converters. The ICL7667"s high current outputs minimize power losses in the power MOSFETs by rapidly charging and discharging the gate capacitance. The ICL7667"s inputs are TTL compatible and can be directly driven by common pulse-width modulation control ICs.
ESD sensitive device, take proper precaution while handling the device.
电源电压DC 4.50V min
额定功率 500 mW
上升/下降时间 20 ns
输出接口数 2
输出电压 15 V
针脚数 8
耗散功率 500 mW
下降时间Max 30 ns
上升时间Max 30 ns
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 500 mW
电源电压 4.5V ~ 15V
电源电压Max 15 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 8

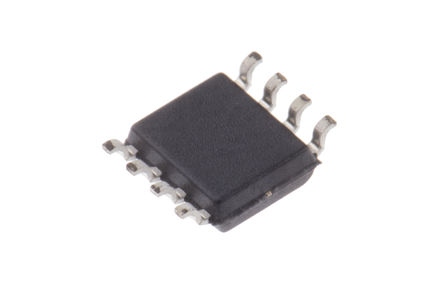

封装 SOIC-8
长度 5 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-8
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
制造应用 Motor Drive & Control, 电机驱动与控制, Power Management, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ICL7667CBAZA Intersil 英特矽尔 | 当前型号 | 当前型号 |
ICL7667CBAZA-T 英特矽尔 | 完全替代 | ICL7667CBAZA和ICL7667CBAZA-T的区别 |
ICL7667CBA 英特矽尔 | 类似代替 | ICL7667CBAZA和ICL7667CBA的区别 |
MIC4426YM 微芯 | 功能相似 | ICL7667CBAZA和MIC4426YM的区别 |
