IR21084

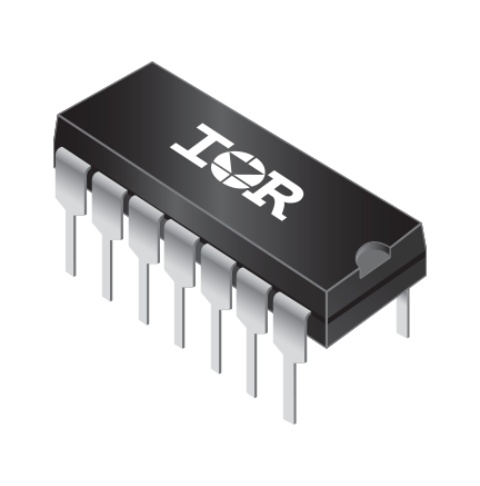

600V Half Bridge Driver IC with typical 0.2A source and 0.35A sink currents in 14 Lead PDIP package for IGBTs and MOSFETs. Also available in 14 Lead SOIC, 8 Lead SOIC, and 8 Lead PDIP.

Summary of Features:

.

Floating channel designed for bootstrap operation

.

Fully operational to +600 V

.

Tolerant to negative transient voltage

.

dV/dt immune

.

Gate drive supply range from 10 to 20 V

.

Undervoltage lockout for both channels

.

3.3 V, 5 V, and 15 V logic input compatible

.

Cross-conduction prevention logic

.

Matched propagation delay for both channels

.

High side output in phase with HIN input

.

Low side output out of phase with LIN input

.

Logic and power ground + /- 5 V offset

.

Internal 540ns dead-time

.

Lower di/dt gate driver for better noise immunity
