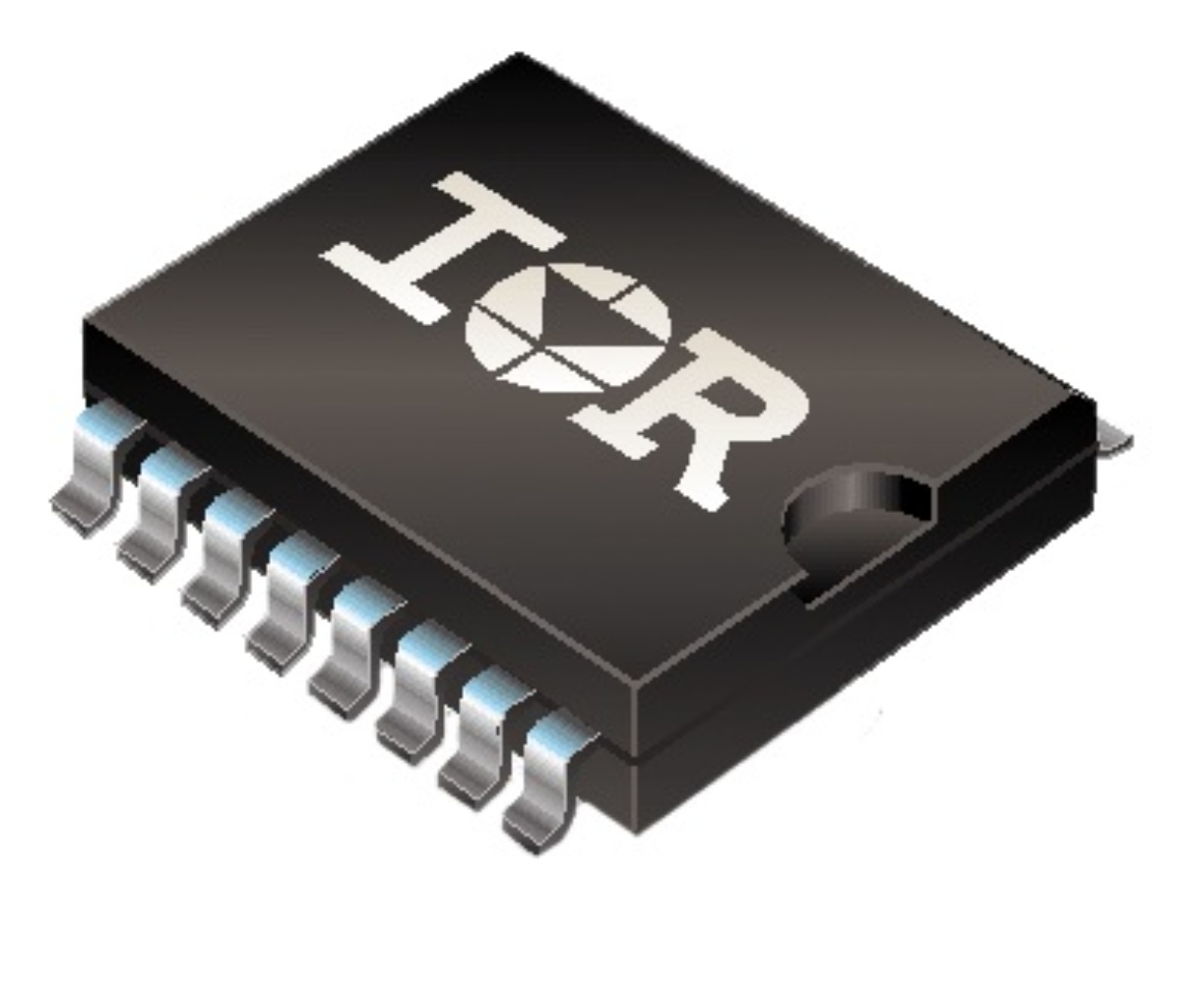

IR2125S

Driver 500V 3.3A 1Out High and Low Side Non-Inv 16Pin SOIC W

Summary of Features:

.

Floating channel designed for bootstrap operation

.

Fully operational to +500 V

.

Tolerant to negative transient voltage

.

dV/dt immune

.

Gate drive supply range from 12 to 18 V

.

Undervoltage lockout

.

Current detection and limiting loop to limit driven power transistor current

.

Error lead indicates fault conditions and programs shutdown time

.

Output in phase with input

.

2.5 V, 5 V and 15 V input logic compatible
