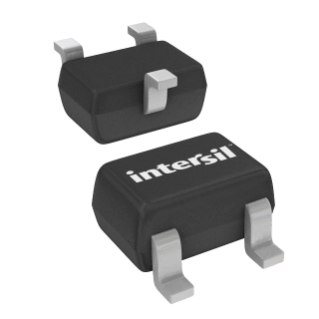

INTERSIL ISL60002BIH320Z-T7A 电压参考系列-固定, 2.048V参考, ± 20ppm/°C, SOT-23-3 新
The is a precision low power FGA voltage reference in 3 pin SOT-23 package. This very high precision analogue voltage reference is fabricated in "s floating gate analogue technology and feature low supply voltage operation at ultra low 350nA operating current. The floating gate technology creates references with very low drift and supply current. The device features initial accuracy as low as ±1mV and 20ppm/°C temperature coefficient. The initial accuracy and temperature stability performance, low supply voltage and 350nA power consumption of ISL60002 eliminates the need to compromise thermal stability for reduced power consumption making it an ideal companion to high resolution, low power data conversion systems. It is used in high resolution A/Ds and D/As digital meters.
ESD sensitive device, take proper precaution while handling the device.
容差 ±0.05 %
输入电压DC 2.70V ~ 5.50V
输出电压 2.048 V
输出电流 7 mA
供电电流 900 nA
通道数 1
针脚数 3
输入电压Max 6.5 V
输出电压Min 2.048 V
输出电流Max 7 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 2.7V ~ 5.5V
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
封装 SOT-23-3
工作温度 -40℃ ~ 85℃ TA
温度系数 ±20 ppm/℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Power Management, Consumer Electronics, Medical, Portable Devices, Power Management, Medical, Consumer Electronics, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ISL60002BIH320Z-T7A Intersil 英特矽尔 | 当前型号 | 当前型号 |
ISL60002CIH320Z-TK 英特矽尔 | 完全替代 | ISL60002BIH320Z-T7A和ISL60002CIH320Z-TK的区别 |
ISL60002BIH320Z-TK 英特矽尔 | 完全替代 | ISL60002BIH320Z-T7A和ISL60002BIH320Z-TK的区别 |
ISL60002DIH320Z-TK 瑞萨电子 | 完全替代 | ISL60002BIH320Z-T7A和ISL60002DIH320Z-TK的区别 |
