ISL60002CIH312-TK

精密低功耗FGA ™电压基准 Precision Low Power FGA⑩ Voltage References

Precision Low Power FGA™ Voltage References

The ISL60002 FGA™ voltage references are very high precision analog voltage references fabricated in "s

proprietary Floating Gate Analog technology and feature low supply voltage operation at ultra-low 350nA operating current.

Features

• Reference Voltages . . .1.024V, 1.2V, 1.25V, 1.8V, 2.048V, 2.5V, 3.0V and 3.3V

• Absolute Initial Accuracy Options. . . . . .  ±1.0mV, ±2.5mV, and ±5.0mV

• Supply Voltage Range

\- ISL60002-10, -11, -12, -18, -20, -25 . . . . . . 2.7V to 5.5V

\- ISL60002-30, -33 . . . . . . . . . . . . . . . . . . . . 3.5V to 5.5V

• Ultra-Low Supply Current. . . . . . . . . . . . . . . . . . 350nA typ

• Low 20ppm/°C Temperature Coefficient

•ISOURCEand ISINK= 7mA

•ISOURCEand ISINK= 20mA for ISL60002-33 only

• ESD Protection. . . . . . . . . . . 5500V Human Body Model

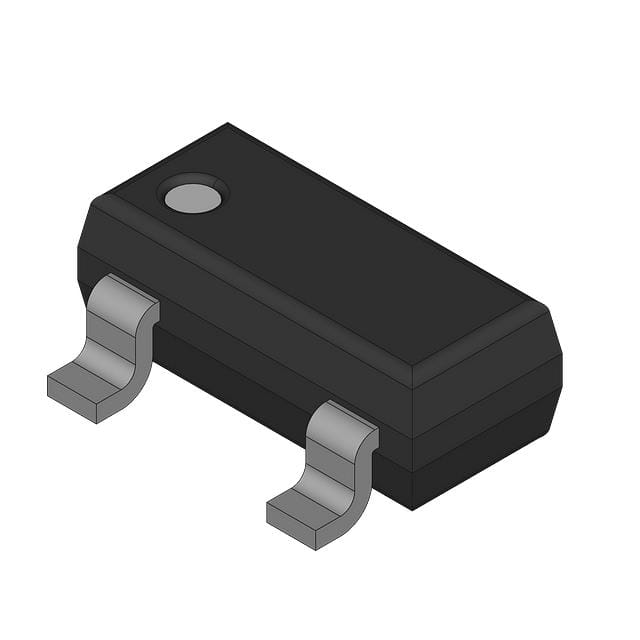

• Standard 3 Ld SOT-23 Packaging

• Operating Temperature Range

\- ISL60002-10, -11, -12, -18, -20, -25, -30

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-40°C to +85°C

\- ISL60002-33 . . . . . . . . . . . . . . . . . . . . .-40°C to +105°C

• Pb-Free Plus Anneal Available RoHS Compliant

Applications

• High Resolution A/Ds and D/As

• Digital Meters

• Bar Code Scanners

• Mobile Communications

• PDA’s and Notebooks

• Medical Systems
