ISL6292-2CR3Z

锂离子/锂聚合物电池充电器 Li-ion/Li Polymer Battery Charger

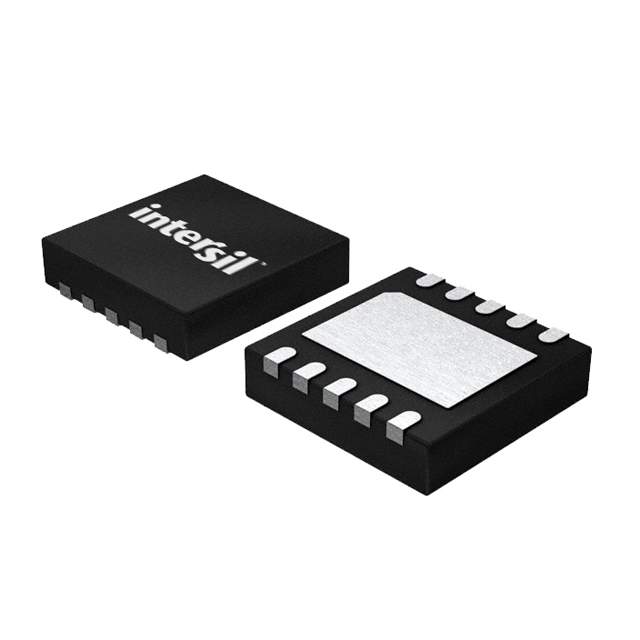

Charger IC Lithium Ion/Polymer 10-DFN 3x3

得捷:
IC BATT CHG LI-ION 1CELL 10DFN

艾睿:
Linear Battery Charger Li-Ion/Li-Pol Packs 1600mA 4.2V 10-Pin DFN EP Tube

安富利:
The ISL6292 is an integrated single-cell Li-ion or Li-polymer battery charger capable of operating with an input voltage as low as 2.4V. This charger is designed to work with various types of AC adapters or a USB port.The ISL6292 operates as a linear charger when the AC adapter is a voltage source. The battery is charged in a CC/CV constant current/constant voltage profile. The charge current is programmable with an external resistor up to 2A. The ISL6292 can also work with a current-limited adapter to minimize the thermal dissipation, in which case, the ISL6292 combines the benefits of both a linear charger and a pulse charger.The ISL6292 features charge current thermal foldback to guarantee safe operation when the printed circuit board is space limited for thermal dissipation. Additional features include preconditioning of an over-discharged battery, an NTC thermistor interface for charging the battery in a safe temperature range, automatic recharge, and thermall

Chip1Stop:
Battery Charger Li-Ion/Li-Pol Packs 1600mA 4.2V 10-Pin DFN EP

Newark:
# INTERSIL  ISL6292-2CR3Z  Battery Charger for 1 Cell of Li-Ion, Li-Pol battery, 6.5V input, 4.242V/1.6 A charge, DFN-10

罗切斯特:
Battery Charger Li-Ion/Li-Pol Packs 1600mA 4.2V 10-Pin DFN EP

力源芯城:
单节锂离子或锂聚合物电池充电器
