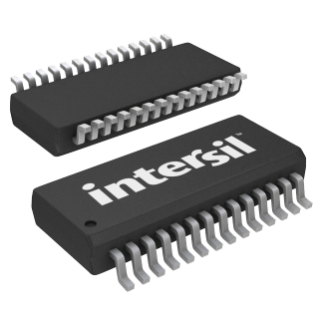

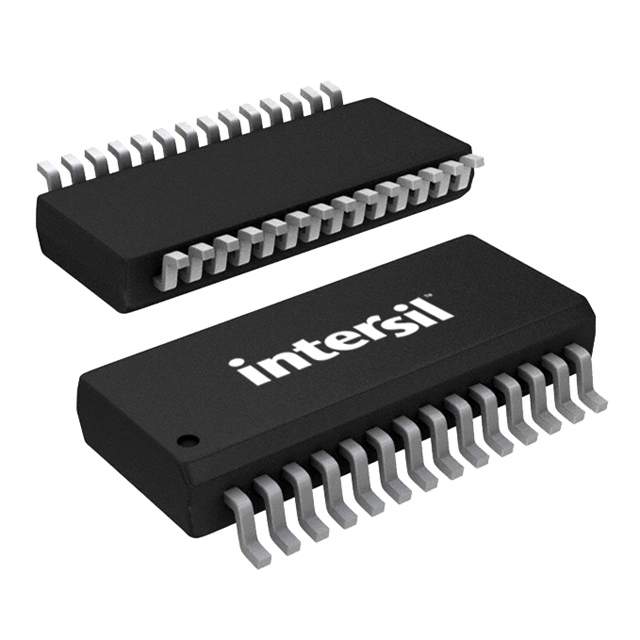

ISL6255HAZ

高度集成的电池充电器具有自动电源选择器，用于笔记本电脑 Highly Integrated Battery Charger with Automatic Power Source Selector for Notebook Computers

The ISL6255, ISL6255A is a highlyintegrated battery charger controller for Li-Ion/Li-Ion polymer batteries. High Efficiency is achieved by a synchronous buck topology and the use of a MOSFET, instead of a diode, for selecting power from the adapter or battery. The low side MOSFET emulates a diode at light loads to improve the light load efficiency and prevent system bus boosting.

Features

• ±0.5% Charge Voltage Accuracy -10°C to 100°C

• ±3% Accurate Input Current Limit

• ±3% Accurate Battery Charge Current Limit

• ±25% Accurate Battery Trickle Charge Current Limit ISL6255A

• Programmable Charge Current Limit, Adapter Current Limit and Charge Voltage

• Fixed 300kHz PWM Synchronous Buck Controller with Diode Emulation at Light Load

• Output for Current Drawn from AC Adapter

• AC Adapter Present Indicator

• Fast Input Current Limit Response

• Input Voltage Range 7V to 25V

• Support 2, 3 and 4 Cells Battery Pack

• Up to 17.64V Battery-Voltage Set Point

• Control Adapter Power Source Select MOSFET

• Thermal Shutdown

• Aircraft Power Capable

• DC Adapter Present Indicator

• Battery Discharge MOSFET Control

• Less than 10µA Battery Leakage Current

• Support Pulse Charging

• Charge Any Battery Chemistry: Li-Ion, NiCd, NiMH, etc.

• Pb-Free Plus Anneal Available RoHS Compliant
