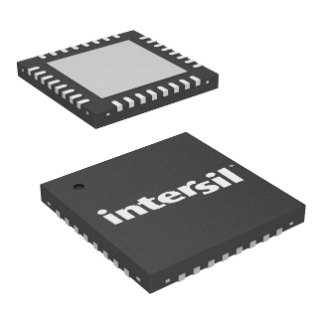

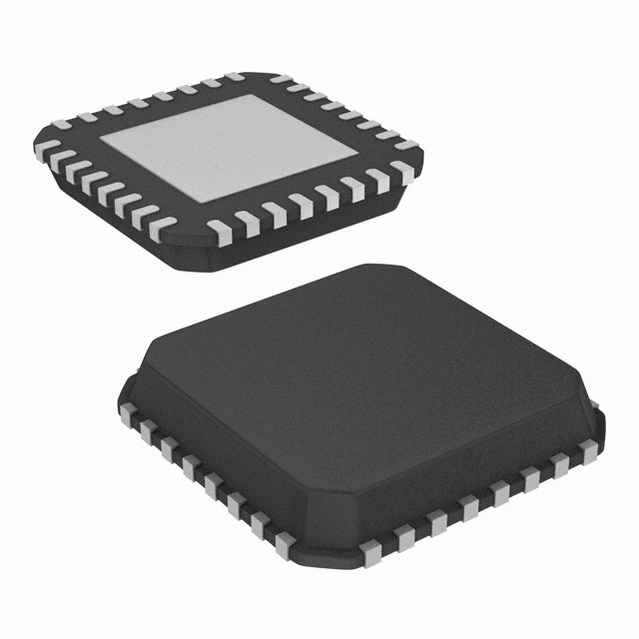

Current Mode PWM Controller 0.6V to 5.5V 100mA 32Pin TQFN EP T/R
High-Efficiency, Quad or Triple-Output System Power Supply Controller for Notebook Computers
The ISL62381, ISL62382, ISL62383, ISL62381C, ISL62382C and ISL62383C family of controllers generate supply voltages for battery-powered systems. These controllers include two pulse-width modulation PWM controllers, adjustable from 0.6V to 5.5V, and two linear regulators, LDO5 and LDO3, that generate a fixed 5V and an adjustable output respectively, and each can deliver up to 100mA.
Features
• High Performance R3 Technology
• Fast Transient Response
• ±1% Output Voltage Accuracy: -10°C to +100°C
• Two Fully Programmable Switch-Mode Power Supplies with Independent Operation
• Programmable Switching Frequency
• Integrated MOSFET Drivers and Bootstrap Diode
• Adjustable +1.2V to +5V LDO Output
• Fixed +5V LDO Output with Automatic Switchover to SMPS2
• Internal Soft-Start and Soft-Stop Output Discharge
• Wide Input Voltage Range: +5.5V to +25V
• Full and Ultrasonic Pulse-Skipping Mode
• Power-Good Indicator
• Overvoltage, Undervoltage and Overcurrent Protection
• Fault Identification by PGOOD Pull-Down Resistance
• Thermal Monitor and Protection
• Pb-Free RoHS Compliant
Applications
• Notebook and Sub-Notebook Computers
• PDAs and Mobile Communication Devices
• 3-Cell and 4-Cell Li+ Battery-Powered Devices
• General Purpose Switching Buck Regulators
