三极与 SCR 输出光电耦合器 Phototriac Output Zero Crossing
DESCRIPTION

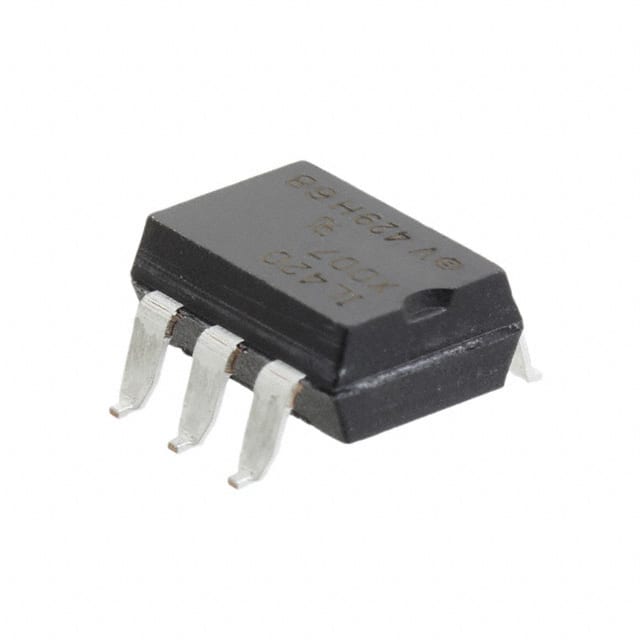

The IL410 and IL4108 consists of a GaAs IRLED optically coupled to a photosensitive zero crossing TRIAC network. The TRIAC consists of two inverse parallel connected monolithic SCRs. These three semiconductors are assembled in a six pin dual in-line package.
FEATURES
• High input sensitivity
• IFT = 2 mA, PF = 1.0
• IFT = 5 mA, PF 1.0
• 300 mA on-state current
• Zero voltage crossing detector
• 600 V, 800 V blocking voltage
• High static dV/dt 10 kV/μs
• Very low leakage < 10 A
• Isolation test voltage 5300 VRMS
• Small 6 pin DIP package
• Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC
APPLICATIONS
• Solid-state relays
• Industrial controls
• Office equipment
• Consumer appliances
通道数 1
正向电压 1.16 V
耗散功率 500 mW
隔离电压 5300 Vrms
保持电流 500 µA
正向电流 60 mA
输出电压Max 560 VAC
正向电压Max 1.35 V
正向电流Max 60 mA
工作温度Max 100 ℃
工作温度Min -55 ℃
耗散功率Max 500 mW
安装方式 Surface Mount
引脚数 6
封装 PDIP-6
长度 8.7 mm
宽度 6.5 mm
高度 3.81 mm
封装 PDIP-6
工作温度 -55℃ ~ 100℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
