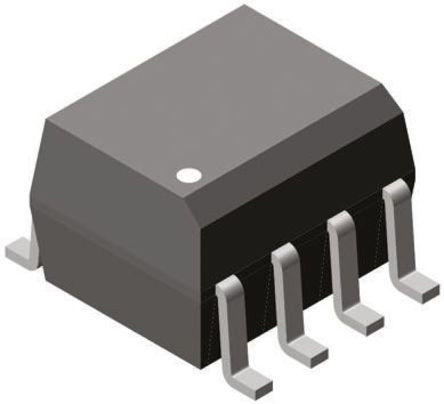

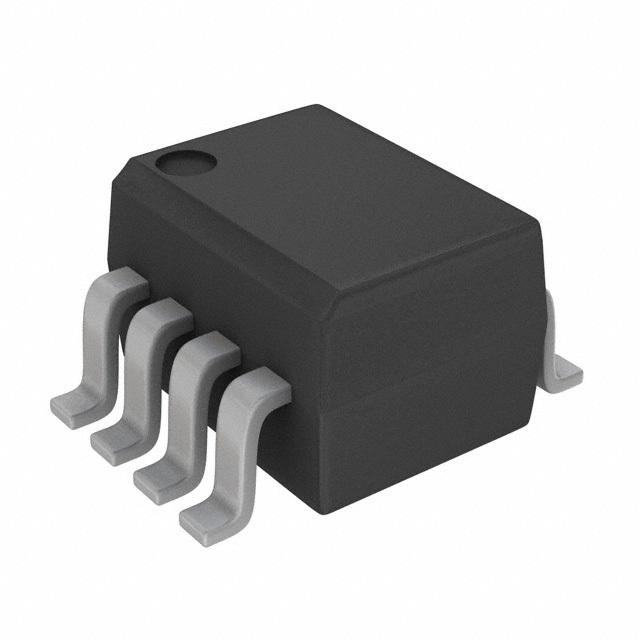

VISHAY IL206AT 光电耦合器, 晶体管输出, 1通道, SOIC, 8 引脚, 60 mA, 4 kV, 63 %
The is a 1-channel 8-pin Phototransistor Output Optocoupler with base connection. It is optically coupled pairs with a gallium arsenide infrared LED and a silicon NPN phototransistor. Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output. It is ideally suited for high density application with limited space. In addition to eliminating through-hole requirements. A specified minimum and maximum CTR allows a narrow tolerance in the electrical design of the adjacent circuits. The high BVCEO of 70V gives a higher safety margin compared to the industry standard 30V.
额定电压DC 1.30 V
输出电压 70 V
通道数 1
针脚数 8
正向电压 1.3 V
输入电流 10.0 mA
耗散功率 240 mW
上升时间 0.003 ms
隔离电压 4 kV
正向电流 60 mA
输出电压Max 70 V
输入电流Min 60 mA
正向电压Max 1.5 V
正向电流Max 60 mA
下降时间 0.003 ms
工作温度Max 100 ℃
工作温度Min -55 ℃
耗散功率Max 240 mW
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
长度 5 mm
宽度 4 mm
高度 1.55 mm
封装 SOIC-8
工作温度 -55℃ ~ 100℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Signal Processing
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
