ISL88001IE16Z-T7A

INTERSIL  ISL88001IE16Z-T7A  芯片, 电压监控器, 1.58V, SC-70-3 新

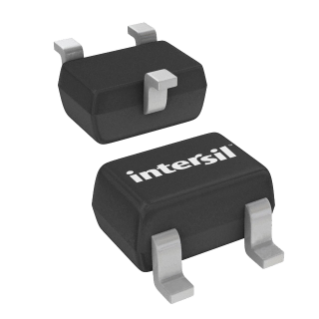

The is an ultra low power voltage supervisor in 3 pin SC-70 package. This supervisor is extremely low power 160nA voltage supervisor that help to monitors the power supply voltages in a wide variety of applications. Device can help to lower system cost, reduce board space requirements and increase the reliability of systems. The reset threshold voltage is accurate to within ±1.2% and the reset signal is valid down to 1V. Active high and active low reset outputs are available in push-pull and open drain configurations. Device is specifically designed for low power consumption and high threshold accuracy, making it especially suitable for electronic devices and portable equipment.

.

Single voltage monitoring supervisor

.

Nominal VTHVDD V is 1.58V

.

Operating temperature range from -40°C to +85°C

.

Ultra low 160nA supply current

.

190ms power-on reset timeout

.

Reset signal valid down to VDD = 1V

.

No external components necessary

.

Immune to power supply transients
