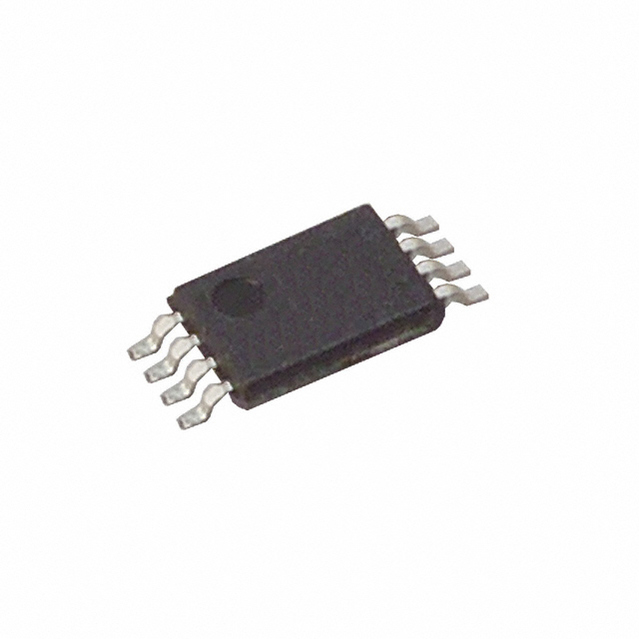

Automotive Grade, 36V, High-Side, High-Speed, Current Output Current Shunt Monitor 8-TSSOP -40℃ to 125℃
The INA139-Q1 and INA169-Q1 INA1x9-Q1 are high-side, unidirectional, current shunt monitors. Wide input common-mode voltage range, high-speed, low quiescent current, and TSSOP-8 packaging enable use in a variety of applications.
The device converts a differential input voltage to a current output. This current is converted back to a voltage with an external load resistor that sets any gain from 1 to over 100. Although designed for current shunt measurement, the circuit invites creative applications in measurement and level shifting.
Both the INA139-Q1 and INA169-Q1 are available in a TSSOP-8 package, and are specified for the –40°C to +125°C temperature range.
电路数 1
通道数 1
共模抑制比 100 dB
输入补偿电压 2 mV
输入偏置电流 10000 nA
工作温度Max 125 ℃
工作温度Min -40 ℃
增益带宽 100 dB
精度 ±0.5 %
共模抑制比Min 100 dB
电源电压Max 30V ~ 50V
电源电压Min 2.7 V
输入电压 2.7V ~ 40V
安装方式 Surface Mount

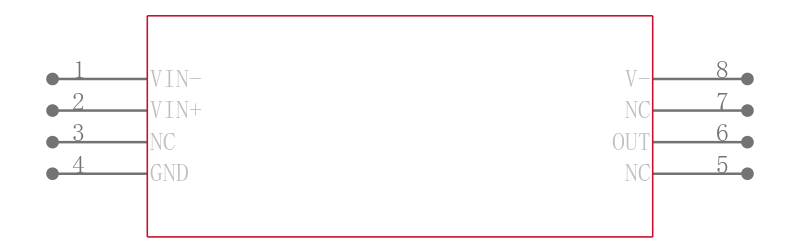

引脚数 8

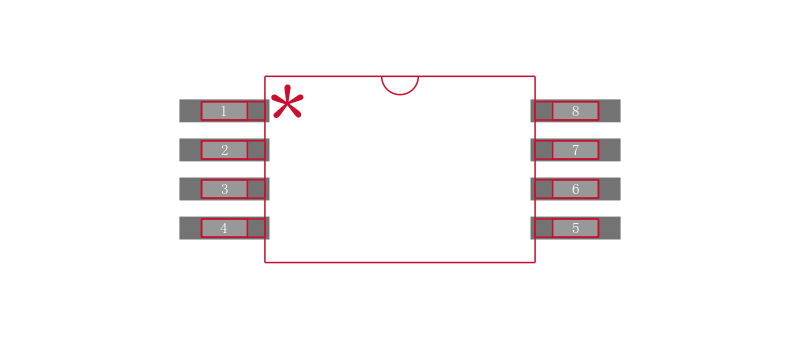

封装 TSSOP-8
封装 TSSOP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
INA139QPWRG4Q1 TI 德州仪器 | 当前型号 | 当前型号 |
INA139QPWRQ1 德州仪器 | 完全替代 | INA139QPWRG4Q1和INA139QPWRQ1的区别 |
