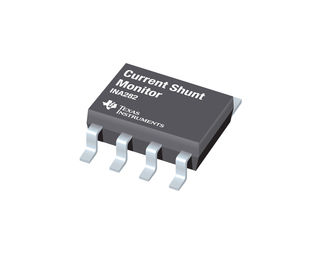

INA282AQDRQ1图片1
INA282AQDRQ1图片2
INA282AQDRQ1图片3
INA282AQDRQ1图片4
INA282AQDRQ1图片5
INA282AQDRQ1图片6
INA282AQDRQ1图片7
INA282AQDRQ1概述

高精度,宽共模范围,双向 High-Accuracy, Wide Common-Mode Range, Bi-Directional

The INA28x-Q1 family includes the INA282-Q1, INA283-Q1, INA284-Q1, INA285-Q1, and INA286-Q1 devices. These devices are voltage output current shunt monitors that can sense drops across shunts at common-mode voltages from –14 V to +80 V, independent of the supply voltage. The low offset of the zero-drift architecture enables current sensing with maximum drops across the shunt as low as 10 mV full-scale.

These current sense amplifiers operate from a single +2.7-V to +18-V supply, drawing a maximum of 900 μA of supply current. These devices are specified over the extended operating temperature range of –40°C to +125°C, and offered in SOIC-8 and VSSOP-8 packages.

INA282AQDRQ1中文资料参数规格
技术参数

通道数 1

共模抑制比 120 dB

输入补偿电压 0.07 mV

工作温度Max 125 ℃

工作温度Min -40 ℃

精度 ±0.4 %

共模抑制比Min 120 dB

电源电压Max 18V ~ 20V

封装参数

安装方式 Surface Mount

引脚数 8

封装 SOIC-8

外形尺寸

封装 SOIC-8

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

INA282AQDRQ1引脚图与封装图

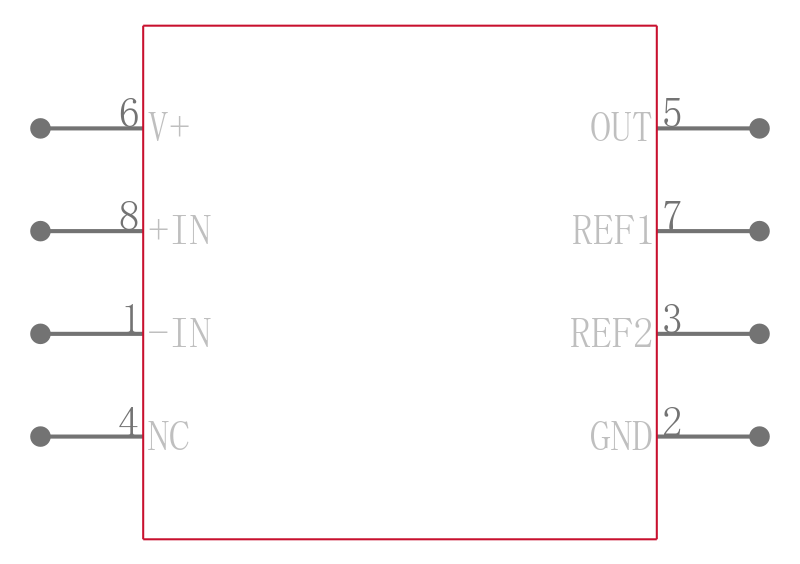

INA282AQDRQ1引脚图
INA282AQDRQ1封装图

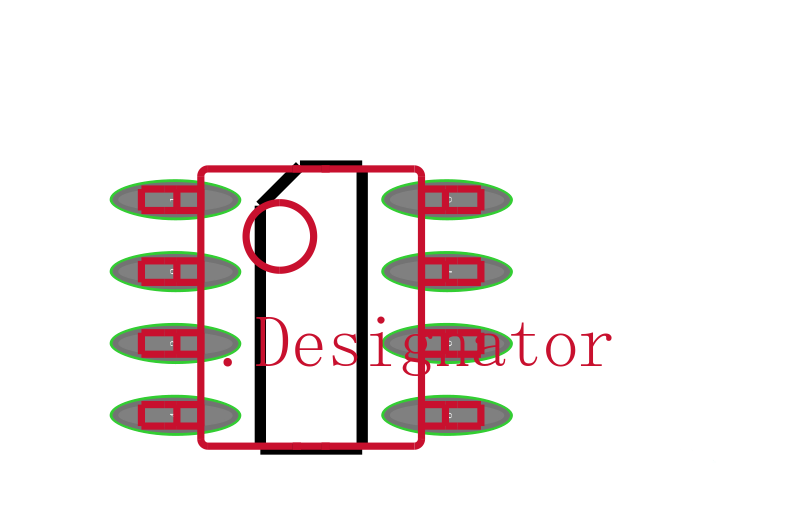

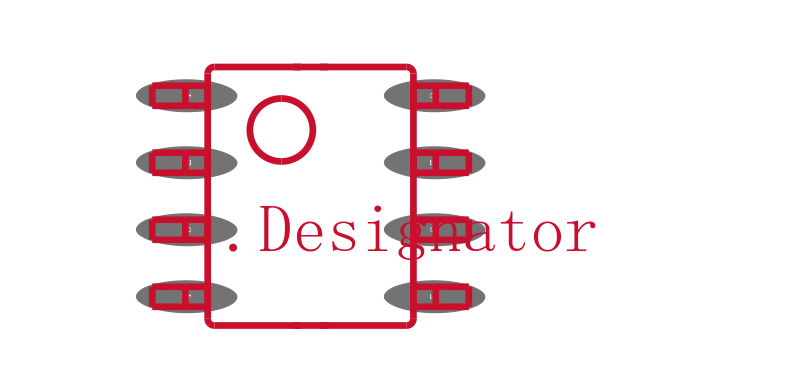

INA282AQDRQ1封装焊盘图
