TEXAS INSTRUMENTS INA285AQDRQ1 电流检测放大器, 双向, 1个放大器, 25 µA, SOIC, 8 引脚, -40 °C, 125 °C
电流监控器 稳压器 高/低端 - 8-SOIC
立创商城:
INA285AQDRQ1
德州仪器TI:
AEC-Q100, -14 to 80V, bi-directional current sense amplifier
得捷:
INA285-Q1 AEC-Q100, 80V, BI-DIRE
e络盟:
电流检测放大器, 双向, 1个放大器, 25 µA, SOIC, 8 引脚, -40 °C, 125 °C
艾睿:
Do you need an electronic device to amplify audio signals in two channels? Then current shunt monitor INA285AQDRQ1 differential amplifier from Texas Instruments is perfect for you! This part has a minimum operating temperature of -40 °C and a maximum of 125 °C. It has a single channel per chip. This device uses a single power supply.
安富利:
SP Amp Current Shunt Monitor Single 18V 8-Pin SOIC T/R
Verical:
SP Amp Current Shunt Monitor Single 18V Automotive 8-Pin SOIC T/R
Newark:
# TEXAS INSTRUMENTS INA285AQDRQ1 Current Sense Amplifier, 1 Amplifier, 25 µA, SOIC, 8 Pins, -40 °C, 125 °C
电源电压DC 18.0V max
通道数 1
针脚数 8
共模抑制比 140 dB
带宽 2 kHz
输入补偿电压 20 µV
输入偏置电流 25 µA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.4 %
共模抑制比Min 120 dB
电源电压Max 18 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 8

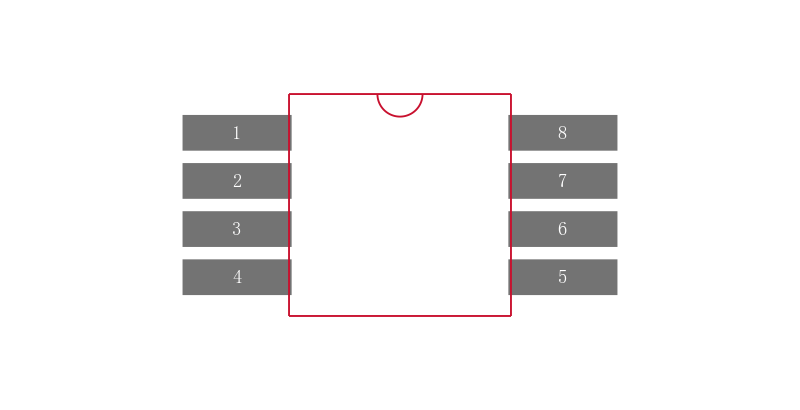

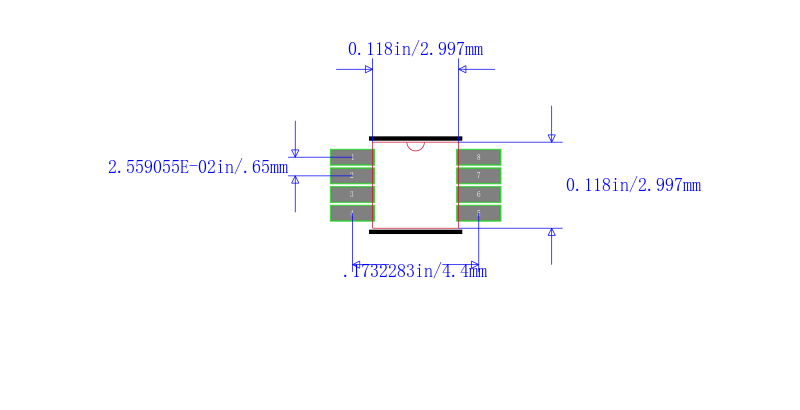

封装 SOIC-8
封装 SOIC-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
