N 通道 MOSFET,100V 至 150V,Vishay Semiconductor### MOSFET 晶体管,Vishay Semiconductor

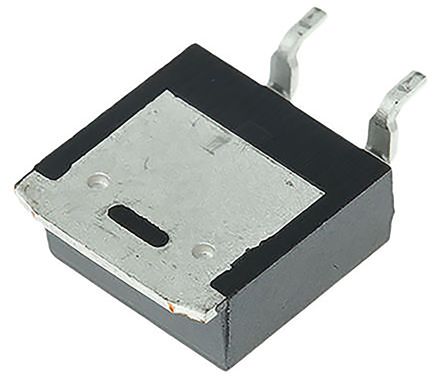

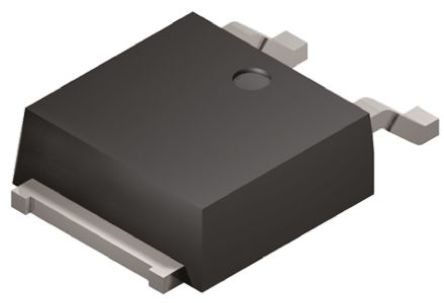

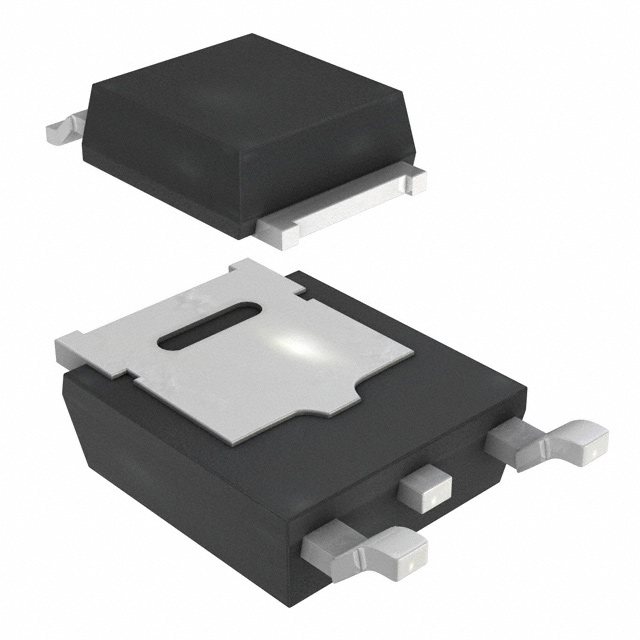

The is a third generation N-channel enhancement-mode Power MOSFET comes with the best combination of fast switching, ruggedized device design and low ON-resistance. The DPAK is designed for surface-mount using vapour phase, infrared or wave soldering techniques. Power dissipation levels up to 1.5W are possible in typical surface-mount applications.
额定电压DC 100 V
额定电流 4.70 A
额定功率 25 W
针脚数 3
漏源极电阻 0.54 Ω
极性 N-Channel
耗散功率 25 W
阈值电压 4 V
输入电容 180pF @25V
漏源极电压Vds 100 V
漏源击穿电压 100 V
连续漏极电流Ids 4.30 A
上升时间 16.0 ns
输入电容Ciss 180pF @25VVds
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 2.5 W
安装方式 Surface Mount
引脚数 3
封装 TO-252
长度 6.73 mm
宽度 6.22 mm
高度 2.39 mm
封装 TO-252
工作温度 -55℃ ~ 150℃
包装方式 Tube
制造应用 Power Management, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
IRFR110PBF Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
IRFR110TRPBF 威世 | 类似代替 | IRFR110PBF和IRFR110TRPBF的区别 |
IRFU110PBF 威世 | 功能相似 | IRFR110PBF和IRFU110PBF的区别 |
