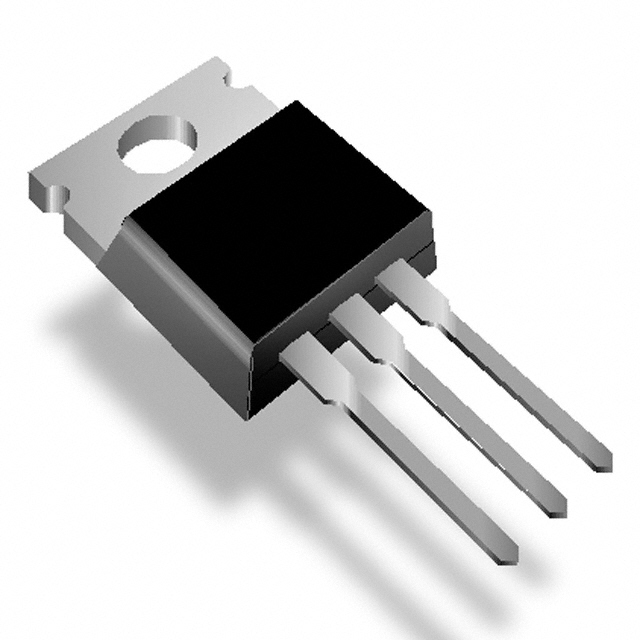

VISHAY IRFZ44PBF 场效应管, MOSFET, N沟道
Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220 package is universally preferred for commercial-industrial applications at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.
**Features:**
* Dynamic dV/dt Rating
* 175°C Operating Temperature
* Fast Switching
* Ease of Paralleling
* Simple Drive Requirements
* Lead Pb-Free Available
额定电压DC 60.0 V
额定电流 50.0 A
针脚数 3
漏源极电阻 0.028 Ω
极性 N-Channel
耗散功率 150 W
阈值电压 4 V
输入电容 1900pF @25V
栅电荷 67.0 nC
漏源极电压Vds 60 V
漏源击穿电压 60 V
栅源击穿电压 ±20.0 V
连续漏极电流Ids 50.0 A
上升时间 110 ns
输入电容Ciss 1900pF @25VVds
下降时间 92 ns
工作温度Max 175 ℃
工作温度Min -55 ℃
耗散功率Max 150000 mW
安装方式 Through Hole
引脚数 3
封装 TO-220-3
长度 10.41 mm
宽度 4.7 mm
高度 15.49 mm
封装 TO-220-3
工作温度 -55℃ ~ 175℃
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
IRFZ44PBF Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
NTE2395 NTE Electronics | 功能相似 | IRFZ44PBF和NTE2395的区别 |
