Single Output Digital Multiphase Controller 48Pin QFN T/R
Benefits:
-
.
-
Ultra Low Quiescent Power 8-phase single output PWM Controller
-
.
-
Intel® VR12 and VR12.5, and Memory VR modes
-
.
-
Overclocking and Gaming Modes
-
.
-
PVI GPU VR mode
-
.
-
Switching frequency from 194KHz to 2MHz per phase in 56 steps
-
.
-
IR Efficiency Shaping Features including Variable Gate Drive, Dynamic Phase Control and Automatic Power State Switching
-
.
-
Programmable 1-phase or 2-phase operation for Light Loads and Active Diode Emulation for Very Light Loads
-
.
-
IR Adaptive Transient Algorithm ATA minimizes output bulk capacitors and system cost
-
.
-
Auto-Phase Detection with PID Coefficient autoscaling
-
.
-
Fault Protection: OVP, UVP, OCP, OTP, CFP
-
.
-
I2C/SMBus/PMBus system interface for reporting of Temperature, Voltage, Current and Power telemetry for both loops
-
.
-
Multiple Time Programming MTP with integrated charge pump for easy non-volatile programming
-
.
-
Compatible with 3.3V tri-state drivers and IR ATL mode drivers
-
.
-
+3.3V supply voltage -40°C to 85°C ambient operation
-
.
-

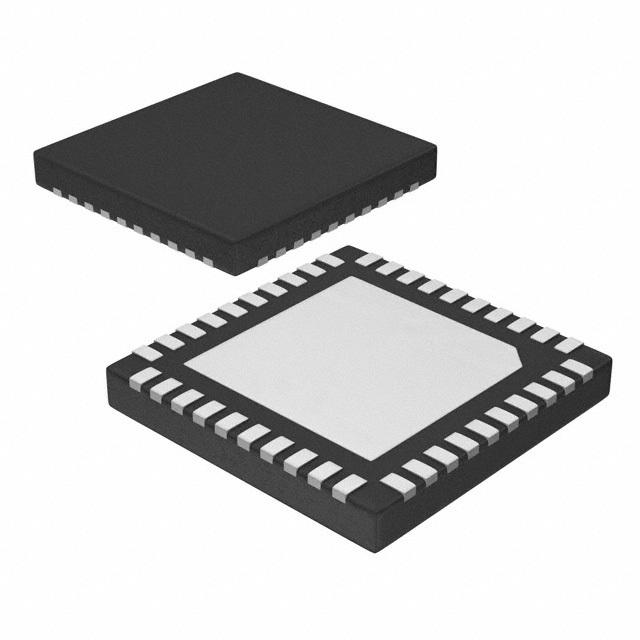

Pb-Free, RoHS, 6x6mm 48-pin, 0.4mm pitch QFN
