三相降压PWM控制器,带有两个集成MOSFET驱动器和一个外部驱动器信号 Three-Phase Buck PWM Controller with Two Integrated MOSFET Drivers and One External Driver Signal
The ISL6566A three-phase PWM control IC provides a precision voltage regulation system for advanced microprocessors. The integration of power MOSFET drivers into the controller IC marks a departure from the separate PWM controller and driver configuration of previous multi phase product families. By reducing the number of external parts, this integration is optimized for a cost and space saving power management solution.
Features
• Integrated Multi-Phase Power Conversion
\- 1 or 2-Phase Operation with Internal Drivers
\- 3-Phase Operation with External PWM Driver Signal
• Precision Core Voltage Regulation
\- Differential Remote Voltage Sensing
\- ±0.5% System Accuracy Over Temperature
\- Adjustable Reference-Voltage Offset
• Precision Channel Current Sharing
\- Uses Loss-Less rDSON Current Sampling
• Accurate Load Line Programming
\- Uses Loss-Less Inductor DCR Current Sampling
• Variable Gate Drive Bias: 5V to 12V
• Microprocessor Voltage Identification Inputs
\- Up to a 6-Bit DAC
\- Selectable between Intel’s VRM9, VRM10, or AMD Hammer DAC codes
\- Dynamic VID-on-the-fly Technology
• Multi-tiered Overvoltage and Overcurrent Protection
• Digital Soft-Start
• Selectable Operation Frequency up to 1.5MHz Per Phase
• Pb-Free Plus Anneal Available RoHS Compliant
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|

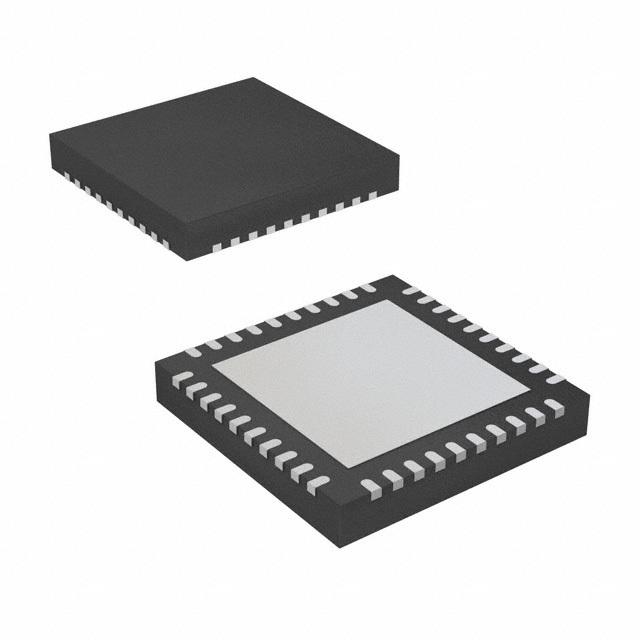

ISL6566ACRZ Intersil 英特矽尔 | 当前型号 | 当前型号 |
ISL6566ACR 英特矽尔 | 功能相似 | ISL6566ACRZ和ISL6566ACR的区别 |
