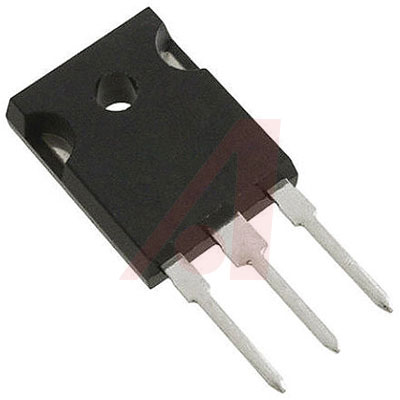

VISHAY IRFP140PBF 场效应管, MOSFET, N沟道
Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-247 package is preferred for commercial-industrial applications where higher power levels preclude the use of TO-220 devices. The TO-247 is similar but superior to the earlier TO-218 package because of its isolated mounting hole. It also provides greater creepage distance between pins to meet the requirements of most safety specifications.
**Features:**
* Dynamic dV/dt Rating
* Repetitive Avalanche Rated
* Isolated Central Mounting Hole
* 175°C Operating Temperature
* Fast Switching
* Ease of Paralleling
* Simple Drive Requirements
* Lead Pb-Free Available
额定电压DC 100 V
额定电流 31.0 A
额定功率 180 W
针脚数 3
漏源极电阻 0.077 Ω
极性 N-Channel
耗散功率 180 W
阈值电压 4 V
输入电容 1700pF @25V
漏源极电压Vds 100 V
漏源击穿电压 100 V
连续漏极电流Ids 31.0 A
上升时间 44 ns
下降时间 43 ns
工作温度Max 175 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 3
封装 TO-247
长度 15.87 mm
高度 20.82 mm
封装 TO-247
工作温度 -55℃ ~ 175℃
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
IRFP140PBF Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
IRFP150NPBF 英飞凌 | 功能相似 | IRFP140PBF和IRFP150NPBF的区别 |
