ISL6534CV-T

双PWM与线性 Dual PWM with Linear

The ISL6534 is a versatile triple regulator that has two independent synchronous-rectified buck controllers with integrated 12V gate drivers OUT1 and OUT2 and a linear controller OUT3 to offer precision regulation of up to three voltage rails. An optional shunt regulator allows 12V only operation, when a 5V supply is not available.

Features

• Two Synchronous-Rectified Buck Controllers

   - Voltage Mode control

   - VIN range up to 12V

   - VOUT range from 0.6V to 6V

   - 12V LGATE drivers; up to 12V Boot Strap for UGATE

• Switcher References

   - 0.6V Reference for OUT1 0.8% Accurate

   - 3.3V Reference Output for OUT2 0.8% Accurate

   - External Reference Input for OUT2

   - Buffered VTT Reference Output

• Switcher clocking

   - Phase options for Optimal Clock Relationship

   - Resistor-Selectable Switching Frequency 300kHz default; Resistor to Ground for 300kHz to 1MHz range

   - Synchronization-Capable Switching Frequency Connect FS_SYNC to Separate Regulator

• Single Linear Controller

   - Drives N-Channel MOSFET

   - 0.6V Reference 0.8% Accurate

   - VIN range up to 12V

   - VOUT range from 0.6V to 6V

• 12V and 5V supplies required but optional shunt regulator can generate VCC = 5.8V from 12V

• Three Independent Soft-Start/Enable Pins

   - Gang Together or Control Independently

• PGOOD Output Indicates All Outputs Available

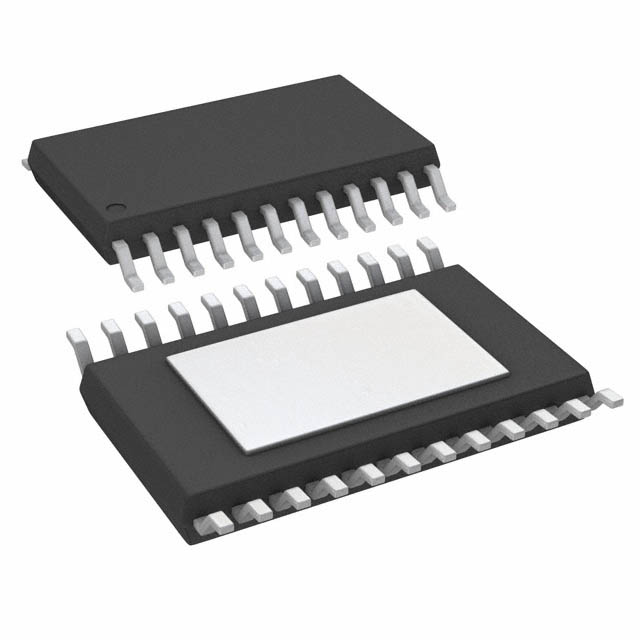

• Thermally Enhanced QFN or TSSOP Package

• QFN Package:

   - Compliant to JEDEC PUB95 MO-220 QFN

   - Quad Flat No Leads - Package Outline

   - Near Chip Scale Package footprint, which improves PCB efficiency and has a thinner profile

• Pb-Free Available RoHS Compliant
