ISL6520BCBZ

单同步降压脉宽调制（ PWM ）控制器 Single Synchronous Buck Pulse-Width Modulation PWM Controller

The ISL6520B makes simple work out of implementing a complete control scheme for a DC-DC stepdown converter. Designed to drive N-channel MOSFETs in a synchronous buck topology, the ISL6520B integrates the control, output adjustment and monitoring functions into a single 8-Lead

package.

Features

• Operates from +5V Input

• 0.8V to VINOutput Range

\- 0.8V Internal Reference

\- ±1.5% Over Line Voltage and Temperature

• Drives N-Channel MOSFETs

• Simple Single-Loop Control Design

\- Voltage-Mode PWM Control

• Fast Transient Response

\- High-Bandwidth Error Amplifier

\- Full 0% to 100% Duty Cycle

• Small Converter Size

\- 300kHz Fixed Frequency Oscillator

\- Internal Soft Start

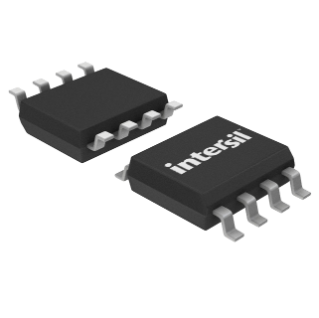

\- 8 Ld SOIC or 16Ld 4x4mm QFN

• QFN Package:

\- Compliant to JEDEC PUB95 MO-220 QFN - Quad Flat No Leads - Package Outline

\- Near Chip Scale Package footprint, which improves PCB efficiency and has a thinner profile

• Pb-Free Available RoHS Compliant
