INTERSIL ICL7107CPLZ 模数转换器, 3.5 bit, 3 SPS, 双 +/-, -5 V, 5 V, DIP

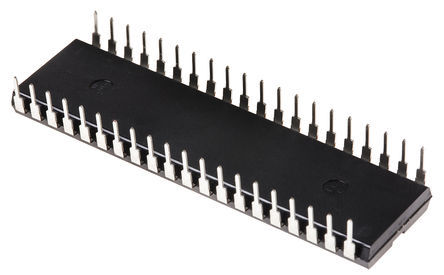

The is a high performance, low power, 3.5 digit A/D converter in 40 pin DIP package. It includes seven segment decoder, display drivers, reference and clock. The ICL7107 directly drives an instrument size light emitting diode LED display. It has auto zero to less than 10µV, zero drift of less than 1µV/°C, input bias current of 10pA and rollover error of less than one count. True differential inputs and reference are useful in all systems but give the designer an uncommon advantage when measuring load cells, strain gauges and other bridge type transducers.
This device is sensitive to electrostatic discharge. Users should follow proper IC handling procedures.
电源电压DC -5.00 V min
供电电流 1.00 mA
电路数 1
通道数 1
针脚数 40
位数 3
耗散功率 10 mW
采样率 3 SPS
功耗 10 mW
模数转换数ADC 1
工作温度Max 70 ℃
工作温度Min 0 ℃
输入通道数 1
电源电压 5 V
电源电压Max 5 V
输入电压 0.2V, 2V
安装方式 Through Hole
引脚数 40
封装 DIP-40
长度 53.2 mm
宽度 14.73 mm
高度 4.95 mm
封装 DIP-40
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
制造应用 Signal Processing, 信号处理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ICL7107CPLZ Intersil 英特矽尔 | 当前型号 | 当前型号 |
ICL7107CPL 英特矽尔 | 类似代替 | ICL7107CPLZ和ICL7107CPL的区别 |
ICL7107RCPLZ 英特矽尔 | 类似代替 | ICL7107CPLZ和ICL7107RCPLZ的区别 |
TC7107CPL 微芯 | 功能相似 | ICL7107CPLZ和TC7107CPL的区别 |
