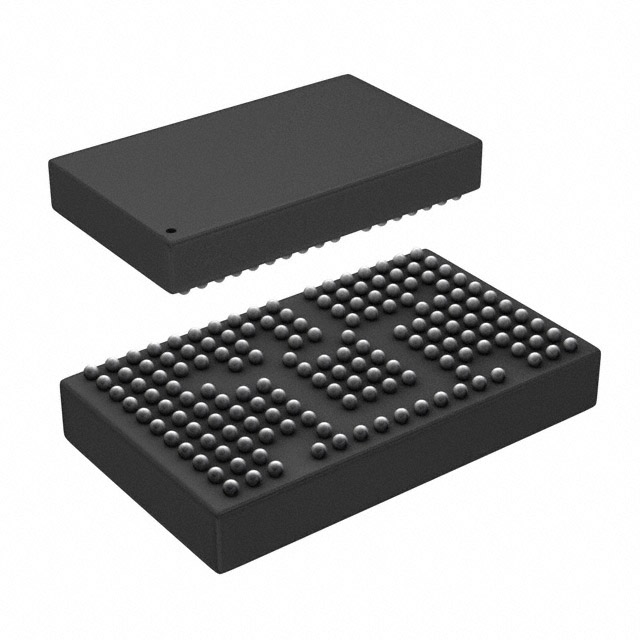

IP1201TRPBF

Module DC-DC 2Out 0.8V to 3.3V/0.8V to 2.5V 30A/15A 158Pin BGA T/R

* 3.14V to 5.5V input voltage * 0.8V to 3.3V output voltage * 2 Phase Synchronous Buck Power Block * 180° out of phase operation * Single or Dual output capability * Dual 15A maximum load capability * Single 2 phase 30A maximum load capability * 200-400kHz per channel nominal switching frequency * Over Current Hiccup or Over Current Latch * External Synchronization capability * Overvoltage protection * Independent soft start per output * Over Temperature protection * Internal features minimize layout sensitivity * Very small outline 15.5mm x 9.25mm x 2.6mm
