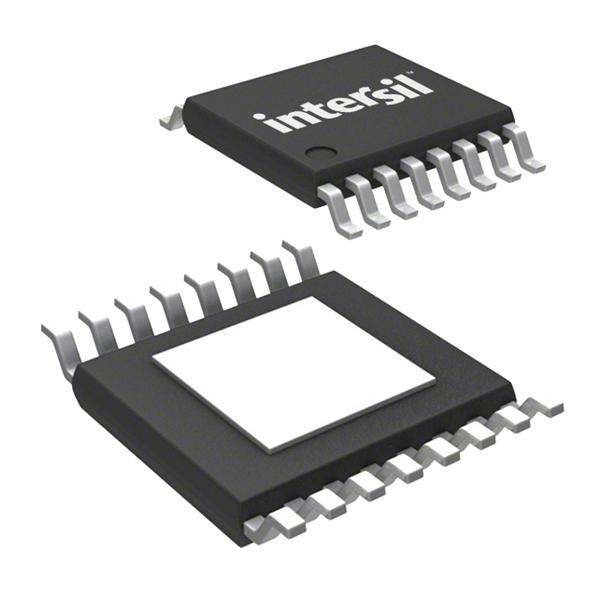

INTERSIL ICL3232IVZ 芯片, 驱动器, RS232, 5.5V, TSSOP-16
The is a powered RS-232 Transmitter/Receiver with part marking. It meets ElA/TIA-232 and V.28/V.24 specifications, even at VCC = 3V. Efficient on-chip charge pumps, coupled with manual and automatic power-down functions, reduce the A trickle. Data rates greater than 250kbps are guaranteed at worst case load conditions. This family is fully compatible with 3.3V only systems, mixed 3.3 and 5V systems and 5V only systems. It features an automatic power-down function which powers down the on-chip power-supply and driver circuits. This occurs when an attached peripheral device is shut off or the RS-232 cable is removed, conserving system power automatically without changes to the hardware or operating system. This device power up again when a valid RS-232 voltage is applied to any receiver input.
电源电压DC 5.50 V, 5.50 V max
供电电流 1 mA
针脚数 16
数据速率 250 kbps
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 3V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 16
封装 TSSOP-16
长度 5.1 mm
宽度 4.5 mm
高度 0.95 mm
封装 TSSOP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
制造应用 Sensing & Instrumentation, Automation & Process Control
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ICL3232IVZ Intersil 英特矽尔 | 当前型号 | 当前型号 |
ICL3232IAZ 英特矽尔 | 完全替代 | ICL3232IVZ和ICL3232IAZ的区别 |
ICL3232CVZ 英特矽尔 | 类似代替 | ICL3232IVZ和ICL3232CVZ的区别 |
ICL3232IVZ-T 英特矽尔 | 类似代替 | ICL3232IVZ和ICL3232IVZ-T的区别 |
