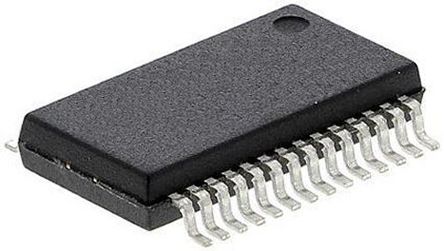

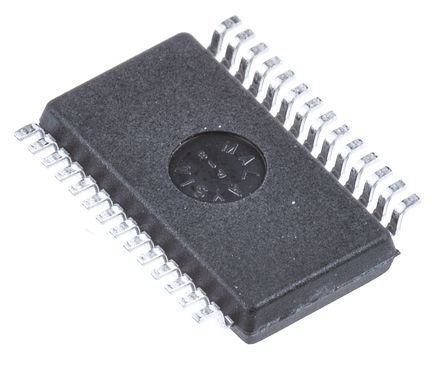

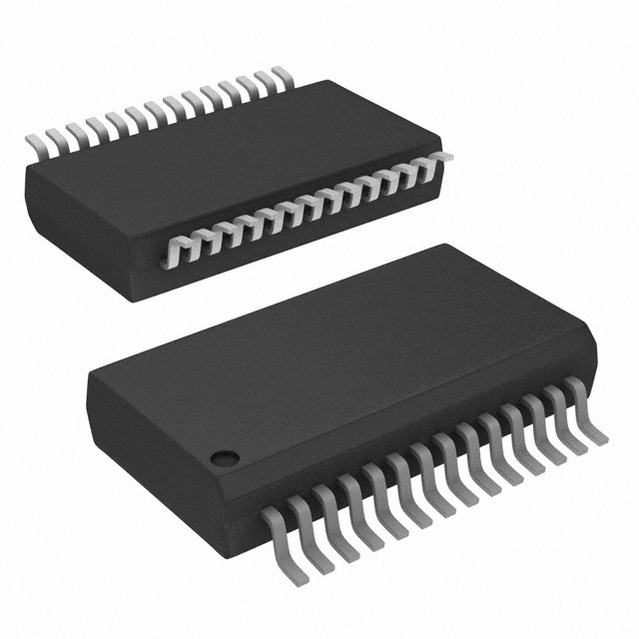

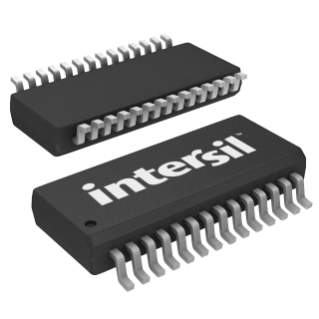

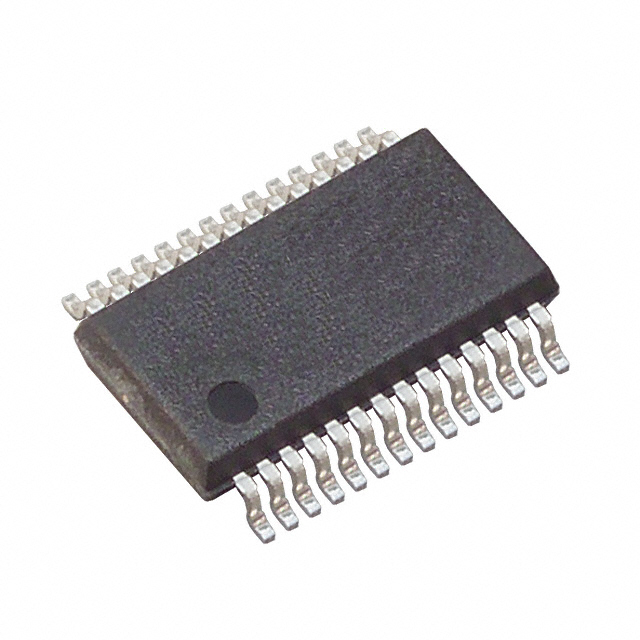

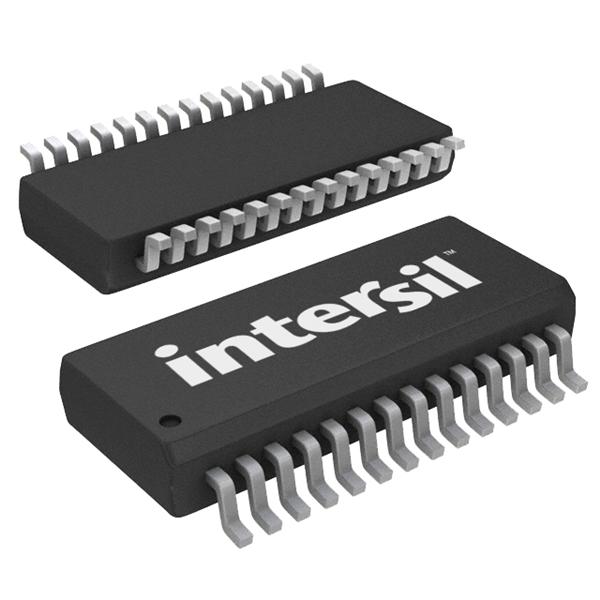

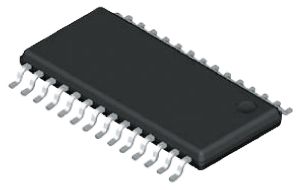

ICL3245ECAZ

RS-232 线路驱动器和接收器，IntersilRS - 232 收发器提供多种配置，数据速率高达 1Mbps，具有 IEC61000 ESD 保护、低功率关闭模式和小型 QFN 封装等特点。### RS-232 线路驱动器和接收器

±15kV ESD Protected, +3V to +5.5V, 1Microamp, 1Mbps, RS-232 Transceivers with Enhanced Automatic Powerdown

The ICL32XXE devices are 3.0V to 5.5V powered RS-232 transmitters/receivers which meet ElA/TIA-232 and V.28/V.24 specifications, even at VCC= 3.0V. Additionally, they provide ±15kV ESD protection IEC61000-4-2 Air Gap and Human Body Model on transmitter outputs and receiver inputs RS-232 pins. Targeted applications are PDAs, Palmtops, and notebook and laptop computers where the low operational, and even lower standby, power consumption is critical. Efficient on-chip charge pumps, coupled with manual and enhanced automatic powerdown functions, reduce the standby supply current to a 1µA trickle.

Features

• Pb-Free Plus Anneal Available RoHS Compliant see Ordering Info

• ESD Protection for RS-232 I/O Pins to ±15kV IEC61000

• Manual and Enhanced Automatic Powerdown Features

• Drop in Replacements for MAX3225E, MAX3227E, MAX3245E

• RS-232 Compatible with VCC= 2.7V

• Meets EIA/TIA-232 and V.28/V.24 Specifications at 3V

• Latch-Up Free

• On-Chip Voltage Converters Require Only Four External 0.1µF Capacitors

• Guaranteed Mouse Driveability ICL3245E

• “Ready to Transmit”Indicator OutputICL3225E/ICL3227E

• Receiver Hysteresis For Improved Noise Immunity

• Guaranteed Minimum Data Rate . . . . . . . . . . . . . . 1Mbps

• Low Skew at Transmitter/Receiver Input Trip Points . . . 10ns

• Guaranteed Minimum Slew Rate . . . . . . . . . . . . . . 24V/µs

• Wide Power Supply Range . . . . . . .  Single +3V to +5.5V

• Low Supply Current in Powerdown State. . . . . . . . . . .1µA

Applications

• Any System Requiring RS-232 Communication Ports

\- Battery Powered, Hand-Held, and Portable Equipment

\- Laptop Computers, Notebooks, Palmtops

\- Modems, Printers and Other Peripherals

\- Digital Cameras

\- Cellular/Mobile Phones
