ISL22343WFR20Z-TK

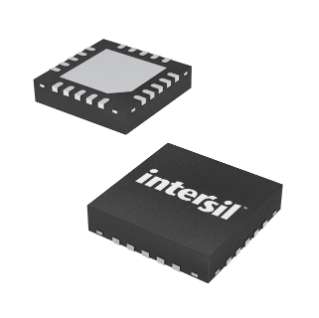

Digital Potentiometer 10KΩ 256POS Non-Volatile Linear 20Pin QFN EP T/R

Low Noise, Low Power, I2C Bus, 256 Taps

The ISL22343 integrates four digitally controlled potentiometers DCP, control logic and non-volatile memory on a monolithic CMOS integrated circuit.

The digitally controlled potentiometer is implemented with a combination of resistor elements and CMOS switches. The position of the wipers are controlled by the user through the I2C bus interface. The potentiometer has an associated volatile Wiper Register WRi and a non-volatile Initial Value Register IVRi that can be directly written to and read by the user. The contents of the WRi control the position of the corresponding wiper. At power up the device recalls the contents of the DCP’s IVRi to the correspondent WRi.

Features

• Four potentiometers in one package

• 256 resistor taps

• I2C serial interface

   - Three address pins, up to eight devices per bus

• Non-volatile EEPROM storage of wiper position

• 11 General Purpose non-volatile registers

• High reliability

   - Endurance: 1,000,000 data changes per bit per register

   - Register data retention: 50 years @ T 55°C

• Wiper resistance: 70 typical @ 1mA

• Standby current <4µA max

• Shutdown current <4µA max

• Dual power supply

   - VCC = 2.25V to 5.5V

   - V- = -2.25V to -5.5V

• 10k, 50k or 100k total resistance

• Extended industrial temperature range: -40°C to +125°C

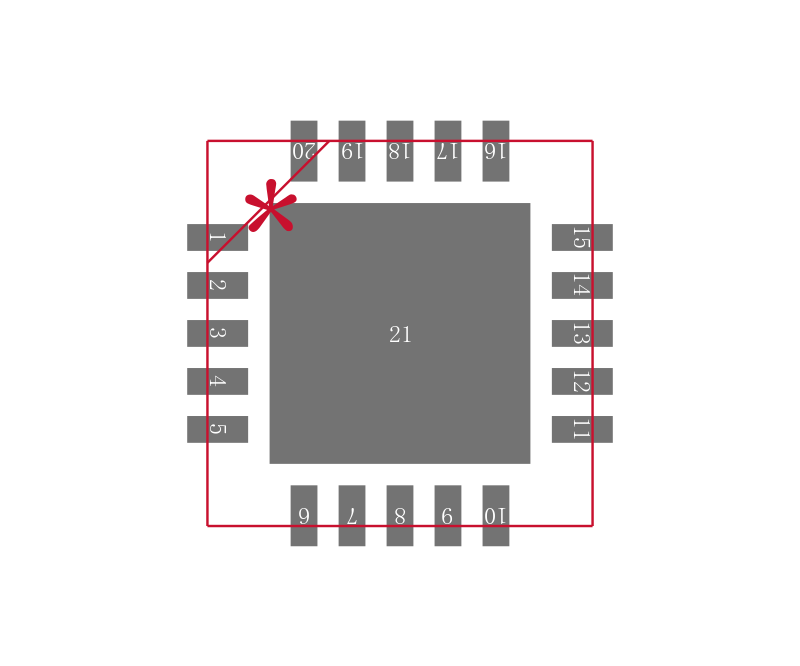

• 20 Ld TSSOP or 20 Ld QFN

• Pb-free RoHS compliant
