ICL7135CQI+

MAXIM INTEGRATED PRODUCTS  ICL7135CQI+  模数转换器, 双 +/-, 4 V, 6 V, PLCC

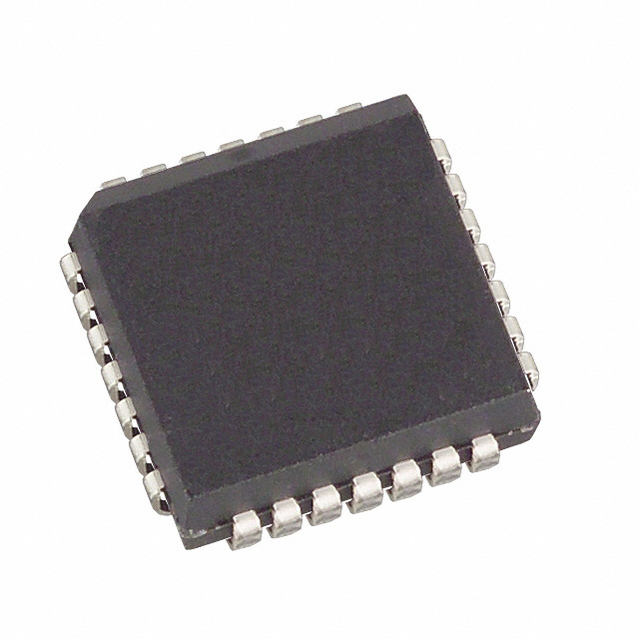

The is a 4½ digit analogue to digital converter with multiplexed BCD outputs in 28 pin PLCC package. This device is divided into analogue section and digital section. The digital section includes the counters, input and output interfaces and control logic which controls the timing of each measurement cycle. Each measurement in divided into four phases as auto-zeroAZ, signal integrate INT, reference deintegrate DE and Zero integrator ZI. Digital section controls operation of analogue during each of these phase using counter and the state of comparator to determine when to star each of these phase. This device is used in wide range of measurement application involving manipulation and display of analogue data such as pressure, voltage, weight, resistance, temperature, speed, current and material thickness.

.

Supply voltage range is 4V to 6V

.

Operating temperature range from 0°C to 70°C

.

Monolithic CMOS design

.

Supports parallel, UART interface

.

Improved 2nd source

.

±20,000 count resolution, ±1 count accuracy

.

Over-range, under-range signal for auto range capability

.

True differential input, zero reading for 0V input

.

TTL compatible, multiplexed BCD outputs
