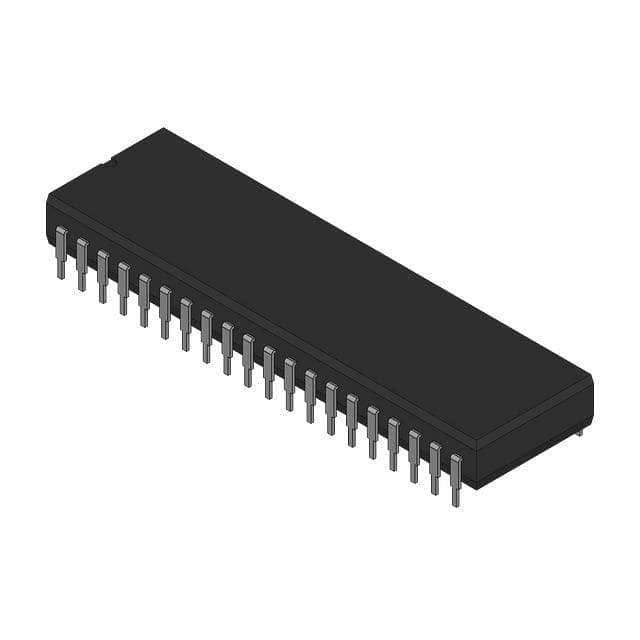

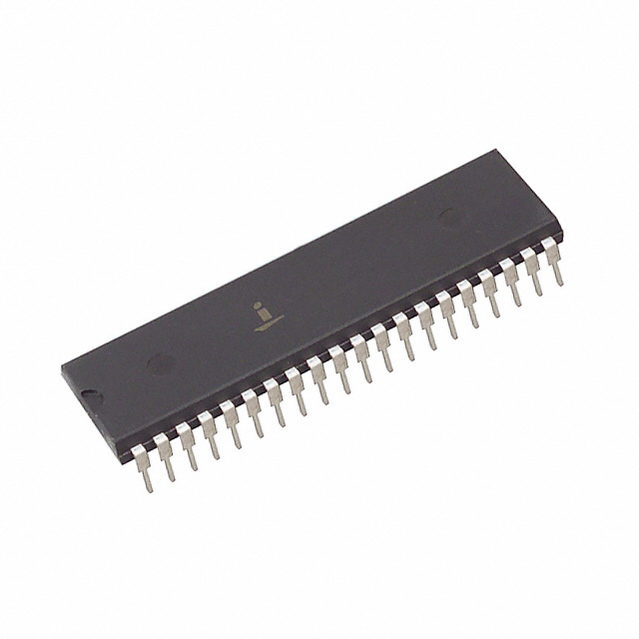

ICL7107SCPL

3 1/2位， LCD / LED显示， A / D转换器 3 1/2 Digit, LCD/LED Display, A/D Converters

The ICL7106 and ICL7107 are high performance, low power, 31/2 digit A/D converters. Included are seven segment decoders, display drivers, a reference, and a clock. The ICL7106 is designed to interface with a liquid crystal display LCD and includes a multiplexed backplane drive; the ICL7107 will directly drive an instrument size light emitting diode LED display.

Features

• Guaranteed Zero Reading for 0V Input on All Scales

• True Polarity at Zero for Precise Null Detection

• 1pA Typical Input Current

• True Differential Input and Reference, Direct Display Drive

   - LCD ICL7106, LED lCL7107

• Low Noise - Less Than 15µVP-P

• On Chip Clock and Reference

• Low Power Dissipation - Typically Less Than 10mW

• No Additional Active Circuits Required

• Enhanced Display Stability

• Pb-Free Plus Anneal Available RoHS Compliant
