3.3V零延迟时钟乘法器 3.3V ZERO DELAY CLOCK MULTIPLIER
DESCRIPTION:
The IDT2308 is a high-speed phase-lock loop PLL clock multiplier. It is designed to address high-speed clock distribution and multiplication applications. The zero delay is achieved by aligning the phase between the incoming clock and the output clock, operable within the range of 10 to 133MHz.
The IDT2308 has two banks of four outputs each that are controlled via two select addresses. By proper selection of input addresses, both banks can be put in tri-state mode. In test mode, the PLL is turned off, and the input clock directly drives the outputs for system testing purposes. In the absence of an input clock, the IDT2308 enters power down, and the outputs are tri-stated. In this mode, the device will draw less than 25µA.
FEATURES:
• Phase-Lock Loop Clock Distribution for Applications ranging from 10MHz to 133MHz operating frequency
• Distributes one clock input to two banks of four outputs
• Separate output enable for each output bank
• External feedback FBK pin is used to synchronize the outputs to the clock input
• Output Skew <200 ps
• Low jitter <200 ps cycle-to-cycle
• 1x, 2x, 4x output options see table:
– IDT2308-1 1x
– IDT2308-2 1x, 2x
– IDT2308-3 2x, 4x
– IDT2308-4 2x
– IDT2308-1H, -2H, and -5H for High Drive
• No external RC network required
• Operates at 3.3V VDD

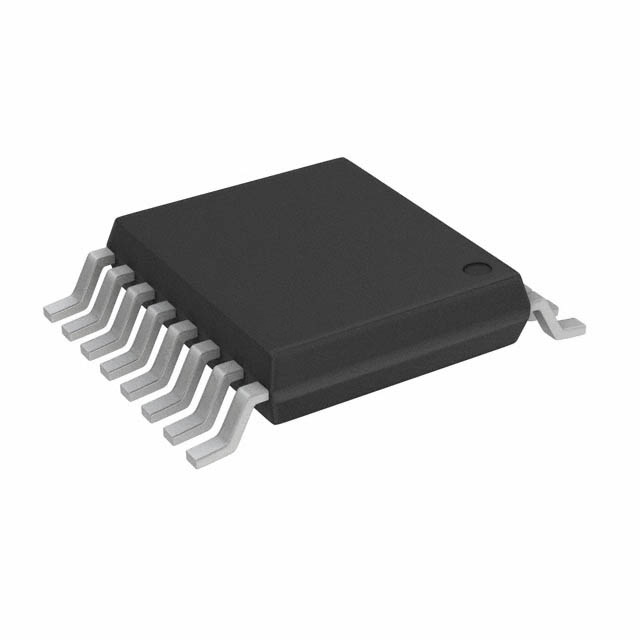

• Available in SOIC and TSSOP packages
APPLICATIONS:
• SDRAM
• Telecom
• Datacom
• PC Motherboards/Workstations
• Critical Path Delay Designs
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
IDT2308-5HPG Integrated Device Technology 艾迪悌 | 当前型号 | 当前型号 |
2308-5HPGG 艾迪悌 | 完全替代 | IDT2308-5HPG和2308-5HPGG的区别 |
