APEM IPR3SAD2 按钮开关, SPST-常开, 关-开, 48 V, 48 V, 500 mA, 焊接

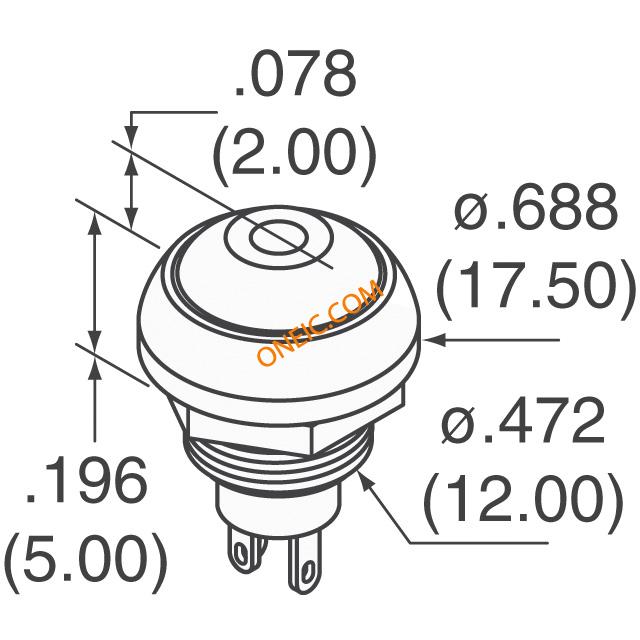

The is a single-pole single-throw SPST non-illuminated momentary Pushbutton Switch for harsh environments, with solder lug terminal, black round curved actuator and NO electrical functions. IP series switch has gold plated silver contact, polyamide 6/6 actuator, polycarbonate lens and epoxy terminal seal. A sealing boot is available to protect the switches against frost and sand.
- .
- Tactile feedback
- .
- 12mm Bushing diameter
- .
- 100mR Initial contact resistance
- .
- IP67 Protection rating
触点电镀 Gold
额定电压DC 50 V
接触器类型 Button
额定电压AC 48 V
额定电流 500mA AC, 200mA DC
排数 1
方向 Vertical
触点类型 SPST-NO
接触电阻 50.0 mΩ
触点额定电流 500 mA
额定电流Max 5A @28VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 250 VAC
接触电阻Max 100 mΩ
安装方式 Panel, Solder Lug
高度 6.4 mm
颜色 Black
触点材质 Silver
工作温度 -40℃ ~ 125℃
包装方式 Bulk
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509030
