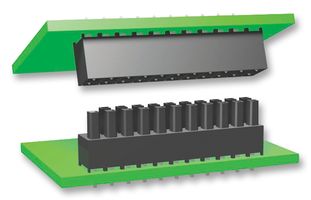

SAMTEC IPT1-120-07-S-D Board-To-Board Connector, 2.54mm, 40Contacts, Header, IPT1 Series, Through Hole, 2Rows
针座 通孔 40 位置 0.100"（2.54mm）
得捷:
CONN HEADER VERT 40POS 2.54MM
艾睿:
Whether you have an AC or DC power entry module, this isolated power terminal strip IPT1-120-07-S-D power connector from Samtec comes in a variety of types to support all sorts of modules. This HDR connector&s;s 40 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. It has a maximum voltage rating of 1095 VDC|775VAC. It has a header type gender. Its pitch is 2.54 mm. This connector has a single port. IPT1-120-07-S-D is housed in liquid crystal polymer. This device has a maximum current rating of 5.9 A/contact. This product is 51.31 mm long, 20.3 mm tall and 5.08 mm deep. This power connector has an operating temperature range of -55 °C to 125 °C. Its 40 terminals use the solder termination method.
安富利:
Conn Isolated Power Terminal Strip HDR 40 POS 2.54mm Solder ST Thru-Hole 40 Terminal 1 Port
Newark:
# SAMTEC IPT1-120-07-S-D Board-To-Board Connector, 2.54 mm, 40 Contacts, Header, IPT1 Series, Through Hole, 2 Rows
