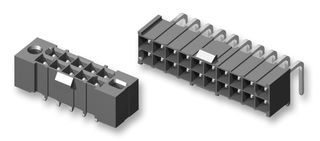

SAMTEC IPBT-115-H1-T-D-RA-GP Wire-To-Board Connector, 4.19mm, 20Contacts, Header, IPBT Series, Through Hole, 2
Connector Header Through Hole, Right Angle 30 position 0.165" 4.20mm
得捷:
CONN HEADER R/A 30POS 4.20MM
欧时:
.165" Pwr Mate Isolated Pwr Term.HDR
艾睿:
Are you looking for a solution to connecting a circuit to a power supply? Then use this power mate terminal strip IPBT-115-H1-T-D-RA-GP power connector from Samtec for a secure connection! This HDR connector&s;s 30 contacts that are made out of copper alloy and plated with tin over nickel. It has a header type gender. Its pitch is 4.19 mm. This connector has a single port. It has a maximum voltage rating of 707VDC|500 VAC. It has a right angle body orientation. IPBT-115-H1-T-D-RA-GP is housed in liquid crystal polymer. This device has a maximum current rating of 5.9 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 75.12 mm long, 10.77 mm tall and 17.32 mm deep. Its 30 terminals use the solder termination method. This power connector has a minimum operating temperature of -55 °C and a maximum of 105 °C.
Verical:
Conn Mate Terminal Strip HDR 30 POS 4.19mm Solder RA Thru-Hole 30 Terminal 1 Port
Newark:
# SAMTEC IPBT-115-H1-T-D-RA-GP Wire-To-Board Connector, 4.19 mm, 20 Contacts, Header, IPBT Series, Through Hole, 2
