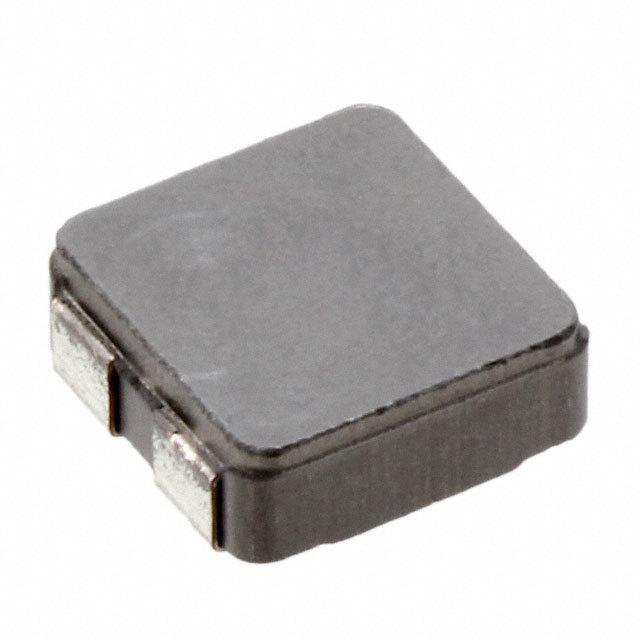

IHCL4040DZER220M5A图片1

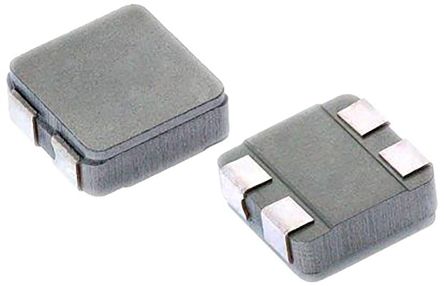

IHCL4040DZER220M5A图片2
IHCL4040DZER220M5A图片3
IHCL4040DZER220M5A图片4
IHCL4040DZER220M5A图片5
IHCL4040DZER220M5A概述

VISHAY  IHCL4040DZER220M5A  耦合电感, 22UH, 20%, 2.6A

The IHCL-4040DZ-5A series low-profile high-current Coupled Inductor handles high transient current spikes without saturation. It is suitable for SEPIC converters, DC/DC converters and common mode applications.

.
Shielded construction
.
Lowest DCR/µH
.
Ultra low buzz noise, due to composite construction
.
Coupling is >90% - optimized for SEPIC converters
.
AEC-Q200 qualified
.
Halogen-free, Green product
.
-55 to 155°C Operating temperature range
IHCL4040DZER220M5A中文资料参数规格
技术参数

容差 ±20 %

电感 22 μH

测试频率 100 kHz

工作温度Max 155 ℃

工作温度Min -55 ℃

电阻DC Max 189.6 mΩ

封装参数

安装方式 Surface Mount

封装 10.67mm x 10.16mm x 4mm

外形尺寸

长度 10.67 mm

高度 4 mm

封装 10.67mm x 10.16mm x 4mm

物理参数

工作温度 -55℃ ~ 155℃

其他

包装方式 Cut Tape CT

制造应用 Industrial, Automotive, LED Lighting, Power Management

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

数据手册

在线购买IHCL4040DZER220M5A
型号: IHCL4040DZER220M5A
描述:VISHAY  IHCL4040DZER220M5A  耦合电感, 22UH, 20%, 2.6A
