IPR3SAD6概述

按钮开关 SEALED OFF-ON RED

The IP series pushbutton switch is offered with momentary and latching push on - push off configurations, and is available with illumination. Expected life of 200,000 cycles. Manufactured with gold plated silver contacts and with solder lug terminals or insulated wire leads.


贸泽:
按钮开关 SEALED OFF-ON RED


艾睿:
Switch Push Button N.O. SPST Round Plunger 5A 48VAC 48VDC Momentary Contact Panel Mount Solder Lug Automotive


Allied Electronics:
Switch; P/B; Sealed; SPST-NO; OFF-MOM; Non-Illum; Rnd; Red Actuator; 0.5A; 48VAC/DC; Sldr


Chip1Stop:
Switch Push Button N.O. SPST Round Plunger 5A 48VAC 48VDC Momentary Contact Solder Lug Panel Mount


Newark:
Pushbutton Switch, On-On, SPST-NO, 250 V, 50 V, 500 mA, Solder


MASTER:
Switch Push Button N.O. SPST Round Plunger 5A 48VAC 48VDC Momentary Contact Panel Mount Solder Lug Automotive


Powell:
IP67 Sealed Pushbutton Switch


Electro Sonic:
Switch Push Button N.O. SPST Round Plunger 5A 48VAC 48VDC Momentary Contact Panel Mount Solder Lug Automotive


IPR3SAD6中文资料参数规格
技术参数

触点电镀 Gold

额定电压DC 50 V

接触器类型 Button

额定电压AC 48 V

额定电流 500mA AC, 200mA DC

绝缘电阻 1 GΩ

排数 1

方向 Vertical

触点类型 SPST-NO

接触电阻 50.0 mΩ

触点额定电流 500 mA

额定电流Max 5A @28VDC

工作温度Max 85 ℃

工作温度Min -40 ℃

额定电压 250 VAC

接触电阻Max 100 mΩ

封装参数

安装方式 Through Hole

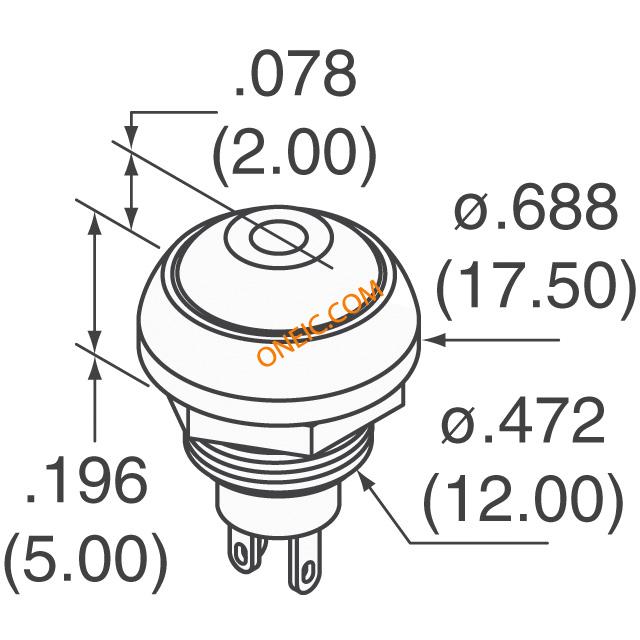

外形尺寸

高度 6.4 mm

物理参数

颜色 Red

触点材质 Silver

工作温度 -40℃ ~ 125℃

其他

产品生命周期 70000 Cycles

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

海关信息

ECCN代码 EAR99

HTS代码 8536509031

数据手册

在线购买IPR3SAD6
型号: IPR3SAD6
制造商: Apem Components
描述:按钮开关 SEALED OFF-ON RED
