ISDF-07-D

CONNECTOR, HOUSING, RCPT, 14POS, 1.27MM; Series: ISDF; No. of Positions: 14; Pitch

14 矩形 - 外壳 绝缘体 黑色 0.050"（1.27mm）

欧时:
Connector Housing, ISD2 Series, Receptac

得捷:
CONN INSULATOR HSG 14POS 1.27MM

艾睿:

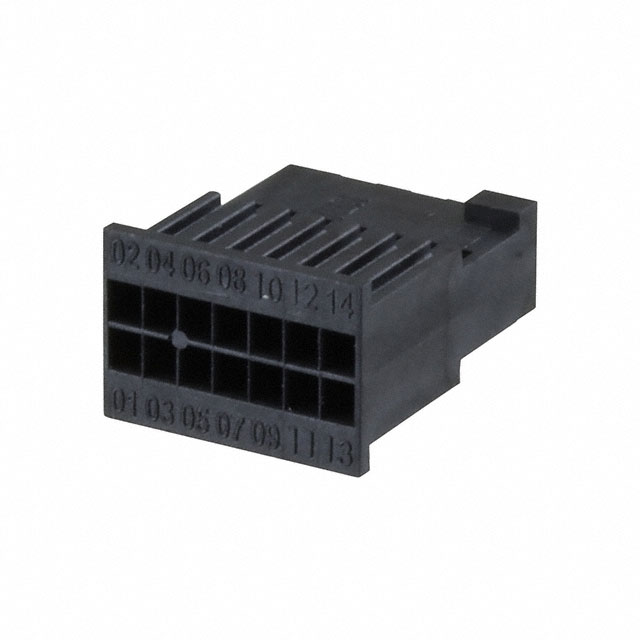

Is a direct socket to board linkage not functional for your project? Then use this ISDF-07-D discrete wire housing from Samtec for a durable connection. This PL connector has 14 PL contacts. Its pitch is 1.27 mm. It has a plug type gender. This is a 2-row connector. It has a straight body orientation. It has a maximum voltage rating of 275 VAC. This device has a maximum current rating of 4 A. Its wire is 28-30 AWG. ISDF-07-D is housed in black liquid crystal polymer. This rectangle connector has an operating temperature of -55 to 80 °C. This product is 9.27 mm long, 6.35 mm tall and 11.18 mm deep.

安富利:
Conn Housing PL 14 POS 1.27mm Crimp ST

Chip1Stop:
Conn Housing PL 14 POS 1.27mm Crimp ST

Verical:
Conn Housing PL 14 POS 1.27mm Crimp ST Black

Newark:
# SAMTEC  ISDF-07-D  Connector Housing, Dual Row, ISDF Series, Receptacle, 14 Positions, 1.27 mm
