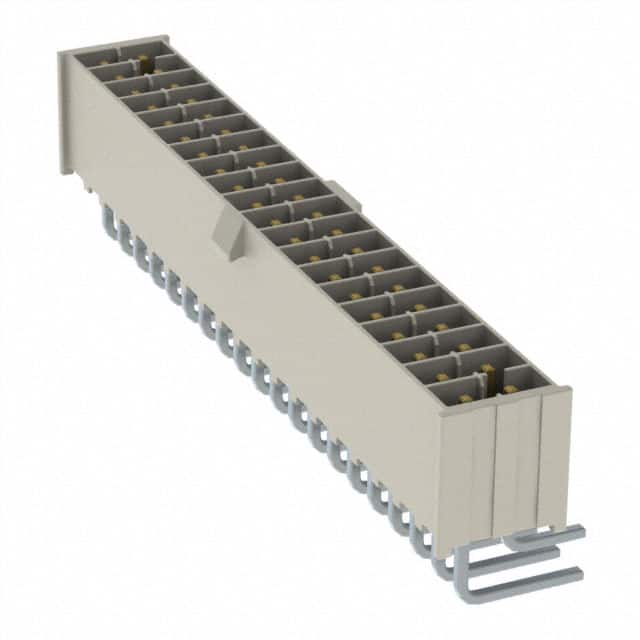

Conn Mini-Power Terminal Strip HDR 40POS 2.54mm Solder RA Thru-Hole 40 Terminal 1Port Tube
This robust mini-power terminal strip power connector from easily retains normal operation in harsh and stressful environments. This HDR connector"s 40 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 954 VDC|675VAC. It has a header type gender. This connector has a single port. Its pitch is 2.54 mm. It has a right angle body orientation. IPL1-120-01-S-D-RA-K is housed in liquid crystal polymer. This device has a maximum current rating of 7.4 A/contact. Its 40 terminals use the solder termination method. This product is 52.32 mm long and 12.19 mm. This power connector has an operating temperature range of -55 °C to 125 °C.
