IPL1-105-01-S-D-RA-K

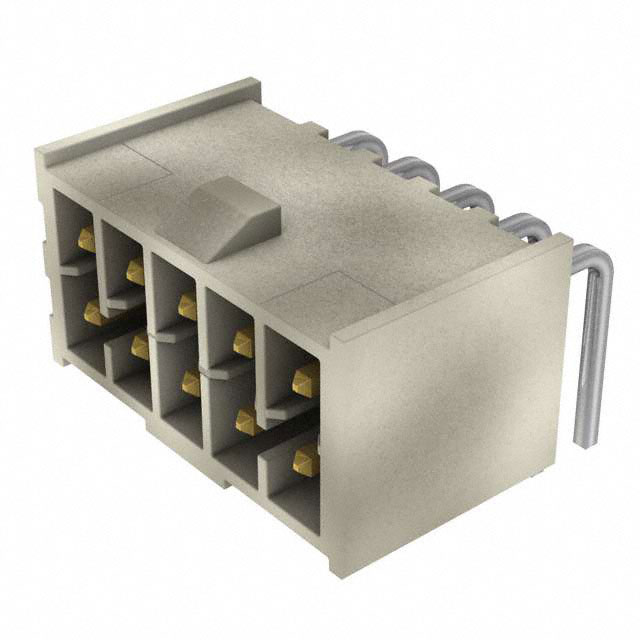

IPL1-105-01-S-D-RA-K图片1
IPL1-105-01-S-D-RA-K图片2
IPL1-105-01-S-D-RA-K图片3
IPL1-105-01-S-D-RA-K图片4
IPL1-105-01-S-D-RA-K概述

Conn Mini-Power Terminal Strip HDR 10POS 2.54mm Solder RA Thru-Hole 10 Terminal 1Port

Harsh and stressful environments are no match for this robust mini-power terminal strip power connector from . This HDR connector"s 10 contacts that are made out of phosphor bronze and plated with gold over nickel. This connector has a single port. It has a header type gender. It has a maximum voltage rating of 954 VDC|675VAC. Its pitch is 2.54 mm. It has a right angle body orientation. This device has a maximum current rating of 7.4 A/contact. IPL1-105-01-S-D-RA-K is housed in liquid crystal polymer. This power connector has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product is 14.22 mm long and 12.19 mm. Its 10 terminals use the solder termination method.

IPL1-105-01-S-D-RA-K中文资料参数规格
技术参数

触点数 10

极性 Male

排数 2

针脚数 10

额定电流Max 7.4A/触头

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 675VAC, 954VDC

接触电阻Max 15 mΩ

封装参数

安装方式 Through Hole

物理参数

外壳颜色 Natural

颜色 Natural

触点材质 Phosphor Bronze

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tube

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买IPL1-105-01-S-D-RA-K
型号: IPL1-105-01-S-D-RA-K
描述:Conn Mini-Power Terminal Strip HDR 10POS 2.54mm Solder RA Thru-Hole 10 Terminal 1Port
替代型号IPL1-105-01-S-D-RA-K
型号/品牌 代替类型 替代型号对比

IPL1-105-01-S-D-RA-K

Samtec 申泰电子

当前型号

当前型号

43045-1021

莫仕

功能相似

IPL1-105-01-S-D-RA-K和43045-1021的区别

15-97-7102

莫仕

功能相似

IPL1-105-01-S-D-RA-K和15-97-7102的区别

43650-1001

莫仕

功能相似

IPL1-105-01-S-D-RA-K和43650-1001的区别
