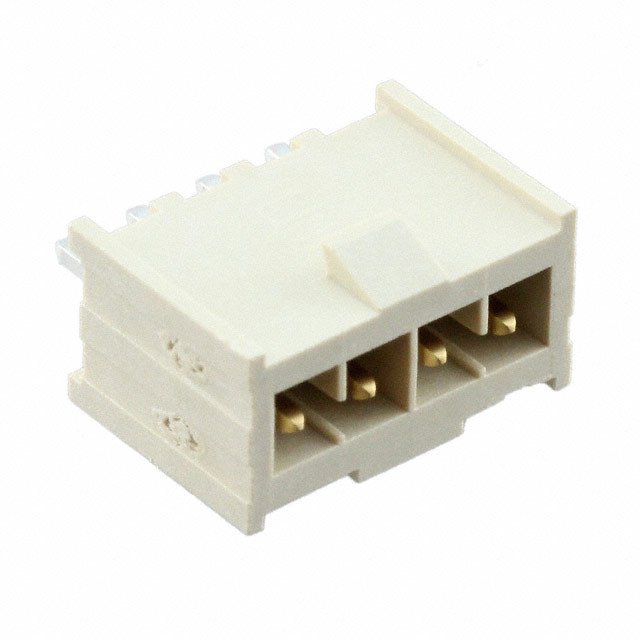

IPL1-104-01-L-S-K

线至板连接器, 2.54 mm, 4 触点, 针座, IPL1 Series, 表面安装　, 1 排

Connector Header Through Hole 4 position 0.100" 2.54mm

欧时:
2.54mm Mini Mate IPL1 PCB header, 4P

得捷:
CONN HEADER VERT 4POS 2.54MM

e络盟:
引脚针座, 线至板, 2.54 mm, 1 排, 4 触点, 通孔安装, Mini Mate IPL1 Series

艾睿:
The mini-power terminal strip IPL1-104-01-L-S-K power connector from Samtec is perfect for powering your circuit because it comes with the least amount of losses. This HDR connector&s;s 4 contacts that are made out of phosphor bronze and plated with gold over nickel. This connector has a single port. It has a straight body orientation. Its pitch is 2.54 mm. It has a maximum voltage rating of 954 VDC|675VAC. It has a header type gender. IPL1-104-01-L-S-K is housed in liquid crystal polymer. This device has a maximum current rating of 7.4 A/contact. This product is 8.13 mm tall. Its 4 terminals use the solder termination method. This power connector has an operating temperature range of -55 °C to 125 °C.

安富利:
Conn Mini-Power Terminal Strip HDR 4 POS 2.54mm Solder ST Thru-Hole 4 Terminal 1 Port

Verical:
Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole
