WURTH ELEKTRONIK  IC-744726 KIT_XMC_DP_EXP_01  评估电路板, XMC数字式, 电源探测器

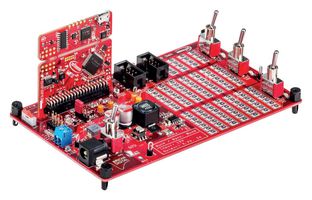

The is a XMC digital power Explorer Kit utilizes XMC range of ARM Cortex-M microcontrollers, OptiMOS™ BSC0924NDI MOSFETs and IRS2011S high and low side drivers. The kits power board features synchronous buck converter with on-board resistive load banks. The load banks can be switched between 10%, 55% and 100% of the maximum load, so that the transient response and the quality of the control loop under different load conditions can be tested. The kit also includes 2 different control card options, XMC1300 control card ARM Cortex-M0 and XMC4200 control card ARM Cortex-M4F with isolated on-board debugger, which allow designers to easy evaluate both XMC microcontroller families and make the right price/performance choice for their application. Multiple test points are provided on the power board for checking the quality of all the relevant signals. Communication option via PMBus™ is provided for easy integration in more complex power management s

.
Synchronous buck converter
.
2 Different control card options - XMC1300 and XMC4200
.
High resolution PWM 150 ps and smart analogue comparators on XMC4200
.
On board resistive load
.
Easy entry into digital power control
.
Voltage mode control and peak current mode control
.
Full software support
IC-744726 KIT_XMC_DP_EXP_01中文资料参数规格
技术参数

内核架构 ARM

其他

Silicon Manufacturer Infineon

Silicon Core Number XMC4200F64K256, XMC1302T038X0200, BSC0924NDI, IRS2011S

Kit Application Type Power Management

Application Sub Type Digital Power Monitor

Core Architecture ARM

Core Sub-Architecture Cortex-M0, Cortex-M4

Silicon Family Name XMC4000

Kit Contents Explorer Board

Product Range \-

Features Exact same part as KIT_XMC_DP_EXP_01 of Infineon. 80MHz/32MHz CPUs on Control Cards, Sync Buck Converter, On-board Debugger/Resistive Load, PMBus/USB

制造应用 Industrial, Test & Measurement, 工业, 通信与网络, 测试与测量, Communications & Networking

符合标准

RoHS标准 RoHS Compliant
