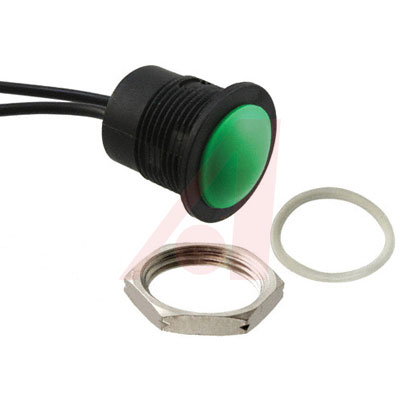

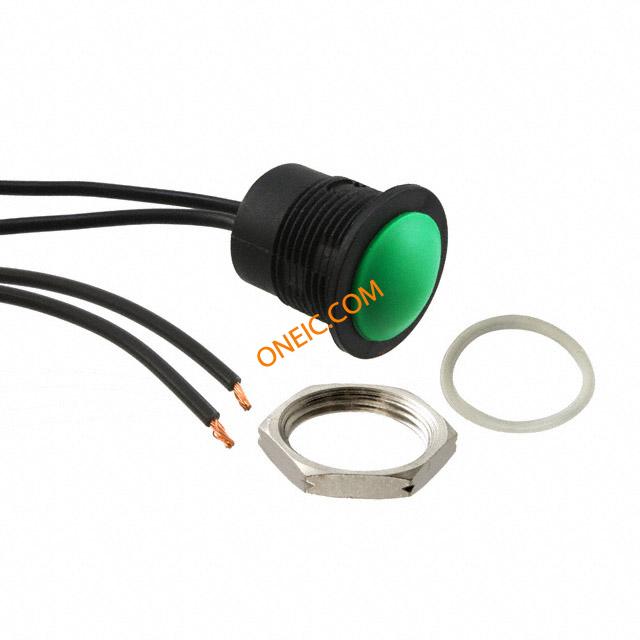

APEM IAR3F1300 按钮开关, SPST-常开, 24 V, 2 A, 带引线
按钮 SPST-NO 标准 前面板安装
得捷:
SWITCH PUSH SPST-NO 2A 24V
欧时:
16MM SEALED P/BUTTON, GREEN ACTUATOR
立创商城:
IAR3F1300
e络盟:
APEM IAR3F1300 按钮开关, SPST-常开, 24 V, 2 A, 带引线
艾睿:
Switch Push Button N.O. SPDT Round Plunger 2A 24VDC Momentary Contact Wire Lead Panel Mount Automotive
Allied Electronics:
Switch; P/B; Sealed; SPST-NO; OFF-MOM; Non-Illum; Rnd; Grn Actuator; 2A; 24VDC; 16mm; Wire
Chip1Stop:
Switch Push Button N.O. SPDT Round Plunger 2A 24VDC Momentary Contact Wire Lead Panel Mount Automotive
Newark:
# APEM IAR3F1300 Pushbutton Switch, SPST-NO, 24 V, 2 A, Wire Leaded
MASTER:
Switch Push Button N.O. SPDT Round Plunger 2A 24VDC Momentary Contact Wire Lead Panel Mount Automotive
Powell:
IP67 Sealed Pushbutton Switch
Electro Sonic:
Switch Push Button N.O. SPDT Round Plunger 2A 24VDC Momentary Contact Wire Lead Panel Mount Automotive
额定电压DC 24 V
接触器类型 Button
额定电流 2A DC
绝缘电阻 100 MΩ
排数 1
方向 Vertical
触点类型 SPST-NO
接触电阻 100 mΩ
触点额定电流 2.00 A
额定电流Max 2A @24VDC
工作温度Max 65 ℃
工作温度Min -20 ℃
额定电压 24 VDC
接触电阻Max 100 mΩ
安装方式 Panel
封装 -
长度 19.8 mm
宽度 19.8 mm
高度 22 mm
封装 -
颜色 Green
触点材质 Silver
工作温度 -20℃ ~ 65℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Bulk
制造应用 Automotive, 工业, Industrial, 医用, 车用, Medical
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
