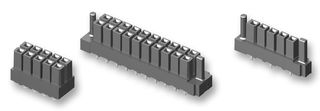

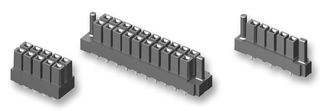

SAMTEC IPBS-105-01-T-D-GP Board-To-Board Connector, 4.19mm, 10Contacts, Header, IPBS Series, Through Hole, 2Rows
10 位置 接头 0.165"(4.20mm) 通孔 锡
得捷:
PWR MATE TERM STRIP HDR 10POS
欧时:
.165" Power Mate Isolated Power Socket S
立创商城:
4.2mm
艾睿:
This isolated power socket strip IPBS-105-01-T-D-GP power connector from Samtec is ideal for powering up your circuit. This SKT connector&s;s 10 contacts that are made out of phosphor bronze and plated with tin over nickel. Its pitch is 4.19 mm. This connector has a single port. It has a maximum voltage rating of 1025 VDC|725VAC. It has a straight body orientation. It has a socket type gender. IPBS-105-01-T-D-GP is housed in liquid crystal polymer. This device has a maximum current rating of 5.9 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This power connector has an operating temperature range of -55 °C to 105 °C. Its 10 terminals use the solder termination method. This product is 32.13 mm long, 13.84 mm tall and 9.6 mm deep.
安富利:
Conn Isolated Power Socket Strip SKT 10 POS 4.19mm Solder ST Thru-Hole 10 Terminal 1 Port Tube
Verical:
Conn Isolated Socket Strip SKT 10 POS 4.19mm Solder ST Thru-Hole 10 Terminal 1 Port
Newark:
# SAMTEC IPBS-105-01-T-D-GP Board-To-Board Connector, 4.19 mm, 10 Contacts, Header, IPBS Series, Through Hole, 2 Rows
触点数 10
极性 Male
触点电镀 Tin
排数 2
针脚数 10
额定电流Max 10.3A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 400VAC, 565VDC
安装方式 Through Hole
封装 -
高度 13.84 mm
封装 -
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tube
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
