IPB80N04S304ATMA1概述
N沟道 40V 80A
Summary of Features:
- .
- N-channel - Enhancement mode
- .
- Automotive AEC Q101 qualified
- .
- MSL1 up to 260°C peak reflow
- .
- 175°C operating temperature
- .
- Green package RoHS compliant
- .
- 100% Avalanche tested
Benefits:
- .
- world"s lowest RDS at 40V on
- .
- highest current capability
- .
- lowest switching and conduction power losses for highest thermal efficiency
- .
- robust packages with superior quality and reliability
- .
- Optimized total gate charge enables smaller driver output stages
IPB80N04S304ATMA1中文资料参数规格
技术参数
极性 N-CH
耗散功率 136W Tc
漏源极电压Vds 40 V
连续漏极电流Ids 80A
上升时间 12 ns
输入电容Ciss 5200pF @25VVds
额定功率Max 136 W
下降时间 10 ns
工作温度Max 175 ℃
工作温度Min -55 ℃
耗散功率Max 136W Tc
封装参数
安装方式 Surface Mount
引脚数 3

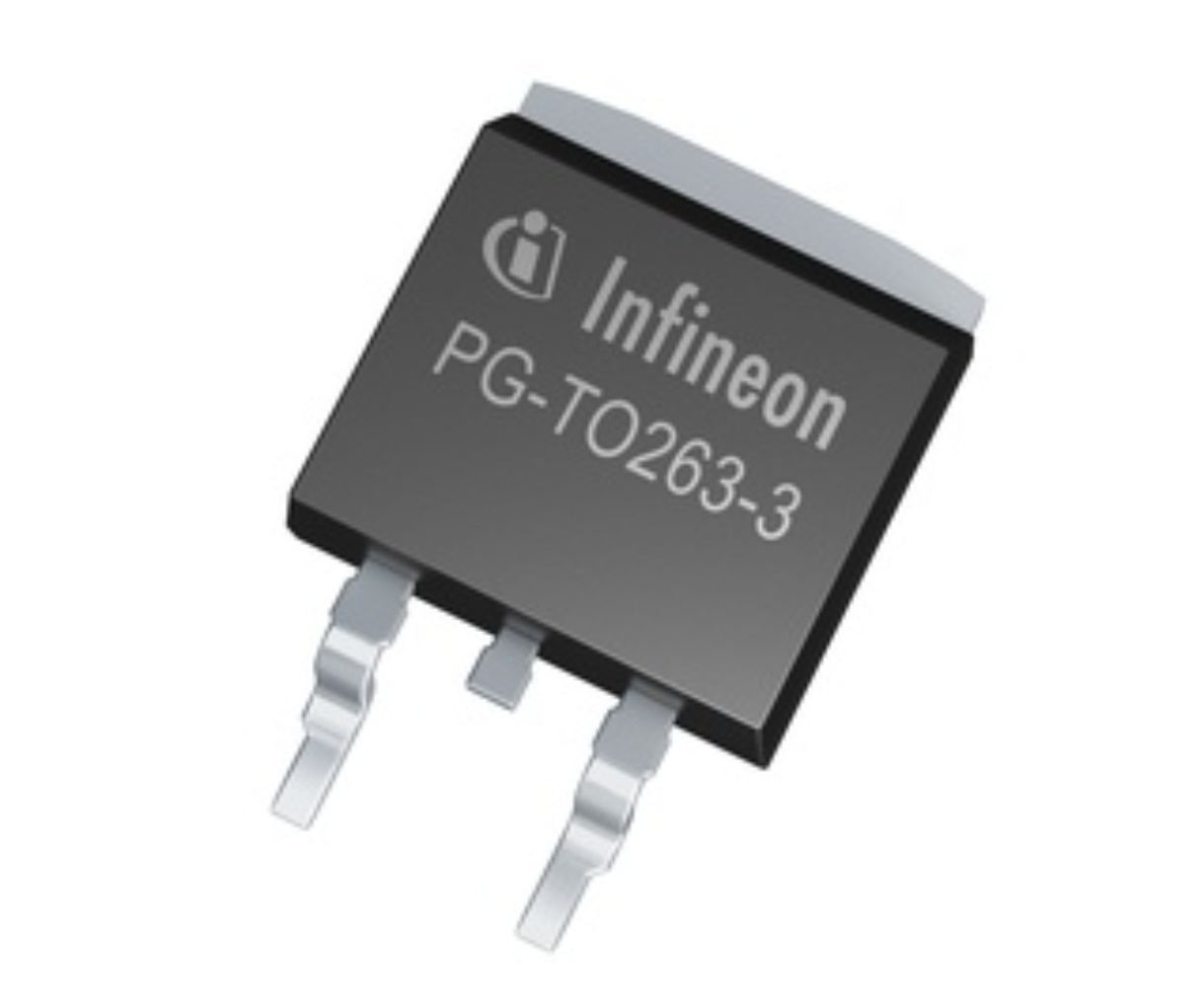

封装 TO-263-3
外形尺寸
封装 TO-263-3
物理参数
工作温度 -55℃ ~ 175℃ TJ
其他
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
制造应用 Thus OptiMOS-T2 40V products based on Infineon’s advanced trench technology will be the benchmark for next generation of automotive applications in energy efficiency, CO2 reduction, e-drives., OptiMOS-T2 40V addresses all kind of EPS motor control, 3-phase and H-bridge motors, HVAC fan control, elec
符合标准
RoHS标准
含铅标准 Lead Free
